contour fails when coordinates are not aligned with axes

[cneyens]

Below I have regularly spaced points that are not aligned with the plot axes. I want to plot contour lines but geom_contour seems to fail here. I vaguely remember this used to work in some former ggplot version, but I tried with versions 3.3.2 and 3.3.0 and those also don't plot contours for this data set so I might be wrong... I would expect geom_contour to be able to handle this since the points are fairly regularly spaced (disregarding minor rounding errors from the rotation calculation I've done here).

For context: these could be spatial data points (XY coordinates) placed on a regular grid for which I've obtained several continuous variables, e.g. groundwater levels and chloride concentrations.

library(ggplot2)

df <- expand.grid(x = 1:10,
                  y = 1:10)
df$z <- c(volcano[53:62, 29:38]) # arbitrary

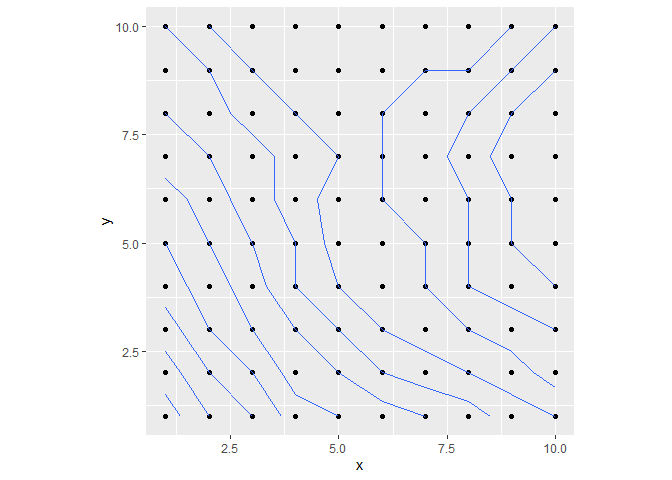

ggplot(df, aes(x = x, y = y)) +
  geom_point() +
  geom_contour(aes(z = z)) +
  coord_fixed()

# rotate points 15 degrees counterclockwise
angle <- atan(df$y/df$x) * 180/pi + 15
df$rotx <- cos(angle * pi/180) * sqrt(df$x^2 + df$y^2)
df$roty <- sin(angle * pi/180) * sqrt(df$x^2 + df$y^2)

p <- ggplot(df, aes(x = rotx, y = roty)) +
  geom_point() +
  coord_fixed()

p + geom_contour(aes(z = z))
#> Warning: stat_contour(): Zero contours were generated
#> Warning in min(x): no non-missing arguments to min; returning Inf
#> Warning in max(x): no non-missing arguments to max; returning -Inf

^{Created on 2021-01-20 by the reprex package (v0.3.0)}

Session info

devtools::session_info()
#> - Session info ---------------------------------------------------------------
#>  setting  value
#>  version  R version 4.0.3 (2020-10-10)
#>  os       Windows 10 x64
#>  system   x86_64, mingw32
#>  ui       RTerm
#>  language (EN)
#>  collate  English_Belgium.1252
#>  ctype    English_Belgium.1252
#>  tz       Europe/Paris
#>  date     2021-01-20
#>
#> - Packages -------------------------------------------------------------------
#>  package     * version date       lib source
#>  assertthat    0.2.1   2019-03-21 [1] CRAN (R 4.0.2)
#>  callr         3.5.1   2020-10-13 [1] CRAN (R 4.0.3)
#>  cli           2.2.0   2020-11-20 [1] CRAN (R 4.0.3)
#>  colorspace    2.0-0   2020-11-11 [1] CRAN (R 4.0.3)
#>  crayon        1.3.4   2017-09-16 [1] CRAN (R 4.0.2)
#>  curl          4.3     2019-12-02 [1] CRAN (R 4.0.2)
#>  DBI           1.1.1   2021-01-15 [1] CRAN (R 4.0.3)
#>  desc          1.2.0   2018-05-01 [1] CRAN (R 4.0.2)
#>  devtools      2.3.2   2020-09-18 [1] CRAN (R 4.0.3)
#>  digest        0.6.27  2020-10-24 [1] CRAN (R 4.0.3)
#>  dplyr         1.0.3   2021-01-15 [1] CRAN (R 4.0.3)
#>  ellipsis      0.3.1   2020-05-15 [1] CRAN (R 4.0.2)
#>  evaluate      0.14    2019-05-28 [1] CRAN (R 4.0.2)
#>  fansi         0.4.2   2021-01-15 [1] CRAN (R 4.0.3)
#>  farver        2.0.3   2020-01-16 [1] CRAN (R 4.0.2)
#>  fs            1.5.0   2020-07-31 [1] CRAN (R 4.0.3)
#>  generics      0.1.0   2020-10-31 [1] CRAN (R 4.0.3)
#>  ggplot2     * 3.3.3   2020-12-30 [1] CRAN (R 4.0.3)
#>  glue          1.4.2   2020-08-27 [1] CRAN (R 4.0.3)
#>  gtable        0.3.0   2019-03-25 [1] CRAN (R 4.0.2)
#>  highr         0.8     2019-03-20 [1] CRAN (R 4.0.2)
#>  htmltools     0.5.0   2020-06-16 [1] CRAN (R 4.0.3)
#>  httr          1.4.2   2020-07-20 [1] CRAN (R 4.0.3)
#>  isoband       0.2.3   2020-12-01 [1] CRAN (R 4.0.3)
#>  knitr         1.30    2020-09-22 [1] CRAN (R 4.0.3)
#>  labeling      0.4.2   2020-10-20 [1] CRAN (R 4.0.3)
#>  lifecycle     0.2.0   2020-03-06 [1] CRAN (R 4.0.2)
#>  magrittr      2.0.1   2020-11-17 [1] CRAN (R 4.0.3)
#>  memoise       1.1.0   2017-04-21 [1] CRAN (R 4.0.2)
#>  mime          0.9     2020-02-04 [1] CRAN (R 4.0.0)
#>  munsell       0.5.0   2018-06-12 [1] CRAN (R 4.0.2)
#>  pillar        1.4.7   2020-11-20 [1] CRAN (R 4.0.3)
#>  pkgbuild      1.2.0   2020-12-15 [1] CRAN (R 4.0.3)
#>  pkgconfig     2.0.3   2019-09-22 [1] CRAN (R 4.0.2)
#>  pkgload       1.1.0   2020-05-29 [1] CRAN (R 4.0.2)
#>  prettyunits   1.1.1   2020-01-24 [1] CRAN (R 4.0.2)
#>  processx      3.4.5   2020-11-30 [1] CRAN (R 4.0.3)
#>  ps            1.5.0   2020-12-05 [1] CRAN (R 4.0.3)
#>  purrr         0.3.4   2020-04-17 [1] CRAN (R 4.0.2)
#>  R6            2.5.0   2020-10-28 [1] CRAN (R 4.0.3)
#>  remotes       2.2.0   2020-07-21 [1] CRAN (R 4.0.3)
#>  rlang         0.4.10  2020-12-30 [1] CRAN (R 4.0.3)
#>  rmarkdown     2.6     2020-12-14 [1] CRAN (R 4.0.3)
#>  rprojroot     2.0.2   2020-11-15 [1] CRAN (R 4.0.3)
#>  scales        1.1.1   2020-05-11 [1] CRAN (R 4.0.2)
#>  sessioninfo   1.1.1   2018-11-05 [1] CRAN (R 4.0.2)
#>  stringi       1.5.3   2020-09-09 [1] CRAN (R 4.0.3)
#>  stringr       1.4.0   2019-02-10 [1] CRAN (R 4.0.2)
#>  testthat      3.0.1   2020-12-17 [1] CRAN (R 4.0.3)
#>  tibble        3.0.5   2021-01-15 [1] CRAN (R 4.0.3)
#>  tidyselect    1.1.0   2020-05-11 [1] CRAN (R 4.0.2)
#>  usethis       2.0.0   2020-12-10 [1] CRAN (R 4.0.3)
#>  vctrs         0.3.6   2020-12-17 [1] CRAN (R 4.0.3)
#>  withr         2.4.0   2021-01-16 [1] CRAN (R 4.0.3)
#>  xfun          0.20    2021-01-06 [1] CRAN (R 4.0.3)
#>  xml2          1.3.2   2020-04-23 [1] CRAN (R 4.0.2)
#>  yaml          2.2.1   2020-02-01 [1] CRAN (R 4.0.0)
#>
#> [1] C:/Users/casne/OneDrive/Documenten/R/library_cas
#> [2] C:/Program Files/R/R-4.0.3/library

[clauswilke]

The requirement for contouring is not that you have a regularly spaced grid but that you have a matrix of z values whose locations can be identified with marginal vectors of x and y values.

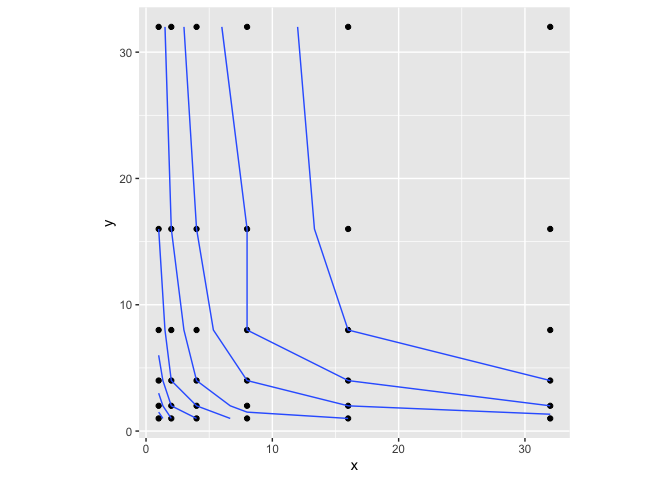

See here for a grid that is not regularly spaced:

library(ggplot2)

df <- expand.grid(x = c(1, 2, 4, 8, 16, 32),
                  y = c(1, 2, 4, 8, 16, 32))
df$z <- c(volcano[53:58, 29:34]) # arbitrary

ggplot(df, aes(x = x, y = y)) +
  geom_point() +
  geom_contour(aes(z = z)) +
  coord_fixed()

^{Created on 2021-01-20 by the reprex package (v0.3.0)}

If your input data doesn't have this structure then you may have to force it into this structure via interpolation.

[clauswilke]

(Having said this, it would probably be possible to add this feature to geom_contour(), so I consider this a feature request.)

[clauswilke]

Relevant SO post with a fairly simple solution: https://stackoverflow.com/a/38177092/4975218

Requires an additional dependency on the akima package: https://cran.r-project.org/web/packages/akima/index.html

[cneyens]

Thanks!

I'm aware of multiple SO posts where interpolation is offered as a solution for cases where the starting data set is not gridded, but I was under the impression that the requirement for geom_contour to work was that the data should be (roughly) evenly spaced as stated in the docs. This clears things up for me:

The requirement for contouring is not that you have a regularly spaced grid but that you have a matrix of z values whose locations can be identified with marginal vectors of x and y values.

[clauswilke]

If you feel the documentation is not sufficiently clear, could you open a separate issue just about that?
