Feat/utae #1212

xiaoshenlong17 · 2025-09-01T18:57:38Z

卫星时间序列影像分割：U-TAE

案例简介

本案例实现了 U-TAE (Unsupervised Temporal Attention Encoder) 模型在 PASTIS 数据集 上的语义分割与全景分割任务。
该模型最早发表于 ICCV 2021（Segmentation of Satellite Image Time Series with Convolutional Temporal Attention Networks）。
我们将原始 PyTorch 实现迁移至 PaddlePaddle，并提供完整的训练与测试脚本。

数据集

PASTIS：一个专为遥感时间序列影像语义分割设计的数据集，包含 Sentinel-2 多时相影像及对应的地块标注。
任务类型：
- 语义分割 (Semantic Segmentation)
- 全景分割 (Panoptic Segmentation)

数据集可通过 PASTIS 官网下载。

模型结构

U-TAE Backbone：采用卷积 + 时间注意力机制对卫星影像时序特征进行建模。
ConvLSTM & LTAE：用于时序特征编码与解码。
Panoptic Head：在语义分割结果上进一步进行全景分割。

迁移实现包括以下核心组件：

src/backbones/：网络骨干（ConvLSTM, LTAE, Positional Encoding, UTAE）
src/learning/：训练过程相关（loss、miou、权重初始化）
src/panoptic/：全景分割模块（PaPs, loss, FocalLoss, metrics, utils）
训练/测试脚本：train_semantic.py、test_semantic.py、train_panoptic.py、test_panoptic.py

使用方法

语义分割任务

训练：

python train_semantic.py --config configs/utae_semantic.yaml

测试：

python test_semantic.py --config configs/utae_semantic.yaml --weights output/utae_semantic/best_model.pdparams

全景分割任务

训练：

python train_panoptic.py --config configs/utae_panoptic.yaml

测试：

python test_panoptic.py --config configs/utae_panoptic.yaml --weights output/utae_panoptic/best_model.pdparams

实验结果

在 PASTIS 数据集上，本案例复现了以下性能（PaddlePaddle 实现）：

SQ (Segmentation Quality): 83.8
RQ (Recognition Quality): 58.9
PQ (Panoptic Quality): 49.7

对比 PyTorch 原版实现，性能相近，说明迁移有效。

文件结构

UTAE
 ├── src
 │   ├── backbones/              # 模型骨干
 │   ├── learning/               # 训练相关工具
 │   ├── panoptic/               # 全景分割模块
 │   ├── dataset.py              # 数据加载
 │   ├── model_utils.py          # 模型工具函数
 │   └── utils.py                # 通用工具
 ├── train_semantic.py           # 语义分割训练
 ├── test_semantic.py            # 语义分割测试
 ├── train_panoptic.py           # 全景分割训练
 └── test_panoptic.py            # 全景分割测试

paddle-bot · 2025-09-01T20:00:40Z

Thanks for your contribution!

HydrogenSulfate

有几处问题还麻烦修改下

HydrogenSulfate · 2025-09-02T11:31:08Z

examples/UTAE/src/backbones/ltae.py

+        """
+        Lightweight Temporal Attention Encoder (L-TAE) for image time series.
+        Attention-based sequence encoding that maps a sequence of images to a single feature map.
+        A shared L-TAE is applied to all pixel positions of the image sequence.
+        Args:
+            in_channels (int): Number of channels of the input embeddings.
+            n_head (int): Number of attention heads.
+            d_k (int): Dimension of the key and query vectors.
+            mlp (List[int]): Widths of the layers of the MLP that processes the concatenated outputs of the attention heads.
+            dropout (float): dropout
+            d_model (int, optional): If specified, the input tensors will first processed by a fully connected layer
+                to project them into a feature space of dimension d_model.
+            T (int): Period to use for the positional encoding.
+            return_att (bool): If true, the module returns the attention masks along with the embeddings (default False)
+            positional_encoding (bool): If False, no positional encoding is used (default True).
+        """


class的docstring请移动到类的下方，__init__的上方

HydrogenSulfate · 2025-09-17T08:13:24Z

docs/zh/examples/UTAE.md

+本案例基于 UTAE（U-TAE） 实现，用 PaddleScience 封装如下：
+```
+--8<--
+examples/utae/src/model.py:1:80


类似的路径跟本PR上传的路径对不上，所以文档里都是无法显示的，麻烦根据PR的文档预览链接，修改一下，

HydrogenSulfate · 2025-09-17T08:14:14Z

docs/zh/examples/UTAE.md

+### 语义分割任务
+- 训练：
+```bash
+python train_semantic.py \
+    --dataset_folder "/path/to/PASTIS" \
+    --epochs 100 \
+    --batch_size 2 \
+    --num_workers 0 \
+    --display_step 10
+```
+
+- 测试：
+```bash
+wget -nc -O pretrained/utae_semantic.pdparams https://paddle-org.bj.bcebos.com/paddlescience/models/utae/semantic.pdparams
+python test_semantic.py \
+  --weight_file pretrained/utae_semantic.pdparams \
+  --dataset_folder "/path/to/PASTIS" \
+  --device gpu --num_workers 0
+
+```
+
+### 全景分割任务
+- 训练：
+```bash
+python train_panoptic.py \
+    --dataset_folder "/path/to/PASTIS" \
+    --epochs 100 \
+    --batch_size 2 \
+    --num_workers 0 \
+    --warmup 5 \
+    --l_shape 1 \
+    --display_step 10
+```
+
+- 测试：
+```bash
+wget -O pretrained/utae_panoptic.pdparams \
+  https://paddle-org.bj.bcebos.com/paddlescience/models/utae/panoptic.pdparams
+python test_panoptic.py \
+  --weight_file ./pretrained/utae_panoptic.pdparams \
+  --dataset_folder "/path/to/PASTIS" \
+  --batch_size 2 \
+  --num_workers 0 \
+  --device gpu
+```
+


这块的代码建议放到开头位置，格式参考：https://paddlescience-docs.readthedocs.io/zh-cn/latest/zh/examples/shock_wave/?h=%E6%BF%80%E6%B3%A2#1

HydrogenSulfate · 2025-09-17T08:14:32Z

docs/zh/examples/UTAE.md

+## 实验结果
+在 PASTIS 数据集上，本案例复现了以下性能（PaddlePaddle 实现）：
+- **SQ (Segmentation Quality)**: 83.8
+- **RQ (Recognition Quality)**: 58.9
+- **PQ (Panoptic Quality)**: 49.7

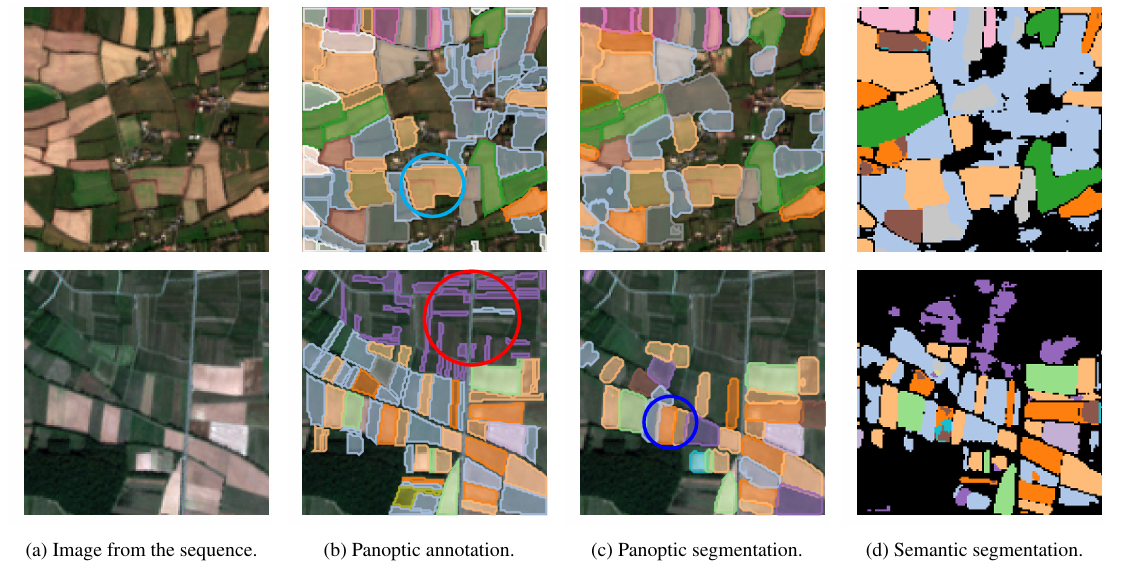

+![rusult](https://paddle-org.bj.bcebos.com/paddlescience/docs/utae/rusult.png)


同理，实验结果和预训练权重，建议放到文档开头位置，参考：https://paddlescience-docs.readthedocs.io/zh-cn/latest/zh/examples/shock_wave/?h=%E6%BF%80%E6%B3%A2#1

HydrogenSulfate · 2025-09-17T08:14:47Z

examples/UTAE/src/backbones/convlstm.py

+        """
+        Initialize ConvLSTM cell.
+
+        Parameters
+        ----------
+        input_size: (int, int)
+            Height and width of input tensor as (height, width).
+        input_dim: int
+            Number of channels of input tensor.
+        hidden_dim: int
+            Number of channels of hidden state.
+        kernel_size: (int, int)
+            Size of the convolutional kernel.
+        bias: bool
+            Whether or not to add the bias.
+        """


__init__相关代码请移动到类名的下方

liaoxin2 · 2025-09-22T02:34:39Z

docs/zh/examples/UTAE.md

+在 PASTIS 数据集上，本案例复现了以下性能（PaddlePaddle 实现）：
+
+- **SQ (Segmentation Quality)**: 83.8
+- **RQ (Recognition Quality)**: 58.9
+- **PQ (Panoptic Quality)**: 49.7


在PASTIS 数据集上，本案例复现了全景分割预测与语义分割预测的可视化结果如图所示：

liaoxin2 · 2025-09-22T02:36:18Z

docs/zh/examples/UTAE.md

+- 源代码实现：[python test_semantic.py \
+  --weight_file /home/aistudio/1/results/Fold_1/model_epoch_8_miou_0.477.pdparams \
+  --dataset_folder "/home/aistudio/PASTIS" \
+  --device gpu
+  --num_workers 0](https://github.com/VSainteuf/utae-paps)


[ ]中的内容换成https://github.com/VSainteuf/utae-paps

xiaoshenlong17 added 5 commits August 30, 2025 15:43

feat: add satellite panoptic segmentation example

a3c1032

feat: add satellite panoptic segmentation example

d6e96e4

remove old files for re-upload

3945b63

style: clean UTAE example entry files

b67e5c0

fix: update train_semantic.py after cleanup

1d0fc07

paddle-bot bot added the contributor label Sep 1, 2025

xiaoshenlong17 added 7 commits September 2, 2025 10:34

docs(UTAE): update example documentation

dee91f7

feat(UTAE): re-upload test_panoptic and test_semantic scripts

d7111ce

docs: update UTAE example documentation

2506ec7

docs: update UTAE example documentation

86cad1e

docs: update UTAE example documentation

4452d68

feat(UTAE): add/update test_semantic & train_semantic

6de1491

Update UTAE.md

dd7c9de

HydrogenSulfate requested changes Sep 17, 2025

View reviewed changes

xiaoshenlong17 added 4 commits September 17, 2025 23:11

feat(UTAE): update zh docs and LTAE backbone

3628c3b

feat(UTAE): re-upload scripts (post hook fixes)

3be6a53

feat(UTAE): re-upload 4 train/test scripts and zh example doc

7316263

feat(UTAE): re-upload files (post hook fixes)

b5f51be

liaoxin2 reviewed Sep 22, 2025

View reviewed changes

xiaoshenlong17 added 5 commits September 22, 2025 19:38

feat(UTAE): post hook fixes for src & UTAE doc

2cd718d

Merge branch 'upstream_develop' into feat/UTAE

5963a5c

chore: post-hook formatting

59fcc4b

docs(UTAE): add UTAE entry to docs/index, README

aceafa5

feat(UTAE): post hook fixes for src & UTAE doc

179af81
