[Issue #3556] Fix:When broker is down, rocketmq client can not retry under Async send model #3555

lwclover · 2021-11-30T09:00:42Z

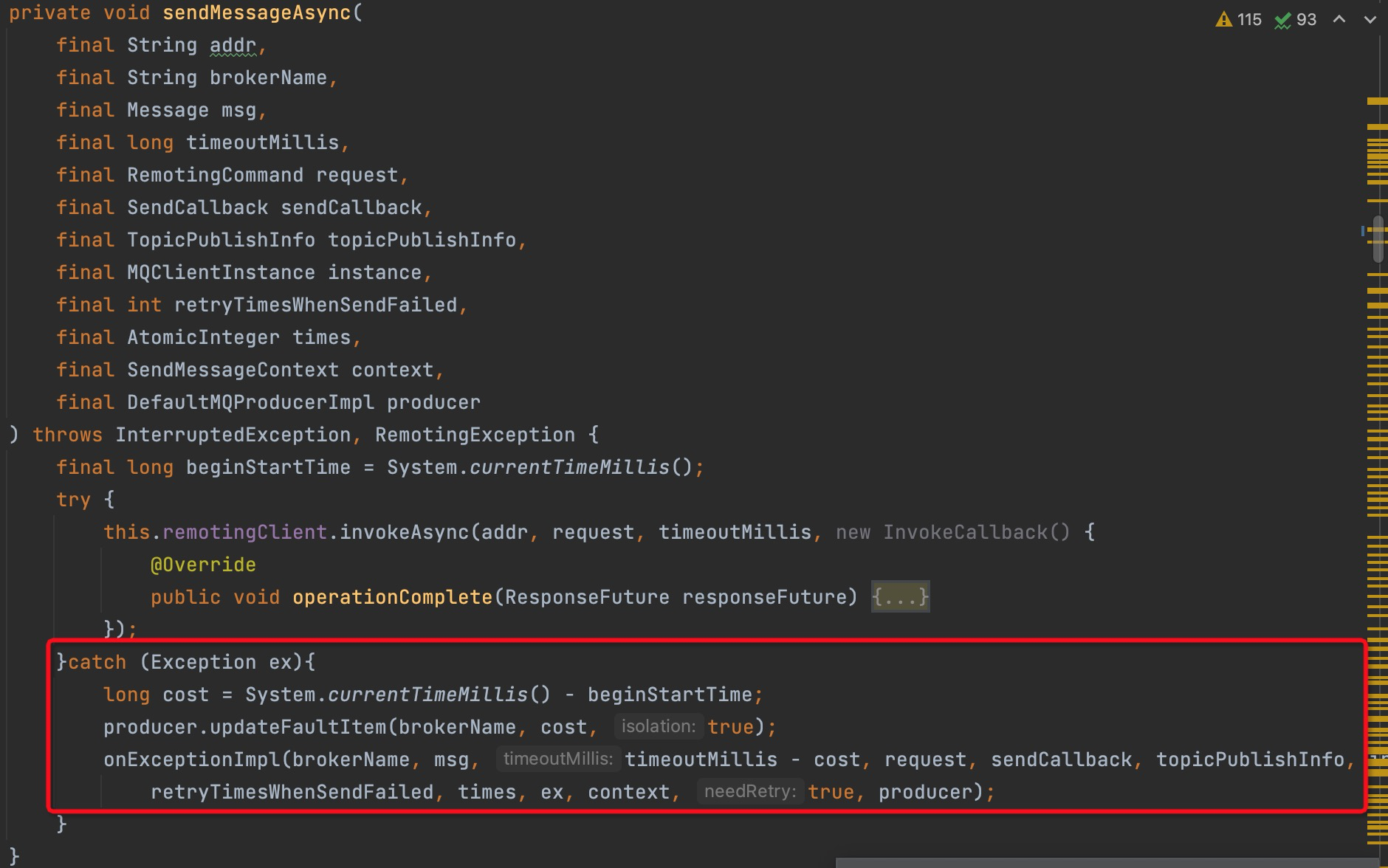

Fix Issue[3556]
RocketMQ client updates topic route infomations every 30 seconds，
When broker is down，Rocketmq client can not connect to the broker. Sending async message can not retry，Throwing a RemotingConnectException.

The RemotingConnectException below:

org.apache.rocketmq.client.exception.MQClientException: Send [1] times, still failed, cost [5]ms, Topic: SSP_VC_COMMAND_CFG_PULL_PUSH_RESPOND_RECORD, BrokersSent: [broker-ssp-11]
See http://rocketmq.apache.org/docs/faq/ for further details.
	at org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl.sendDefaultImpl(DefaultMQProducerImpl.java:610)
	at org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl.access$300(DefaultMQProducerImpl.java:87)
	at org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl$2.run(DefaultMQProducerImpl.java:467)
	at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
	at java.util.concurrent.FutureTask.run(FutureTask.java:266)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.rocketmq.remoting.exception.RemotingConnectException: connect to <x.x.x.x10911> failed
	at org.apache.rocketmq.remoting.netty.NettyRemotingClient.invokeAsync(NettyRemotingClient.java:540)
	at org.apache.rocketmq.client.impl.MQClientAPIImpl.sendMessageAsync(MQClientAPIImpl.java:375)
	at org.apache.rocketmq.client.impl.MQClientAPIImpl.sendMessage$original$hWukCcmf(MQClientAPIImpl.java:332)
	at org.apache.rocketmq.client.impl.MQClientAPIImpl.sendMessage$original$hWukCcmf$accessor$wRKVBfSV(MQClientAPIImpl.java)
	at org.apache.rocketmq.client.impl.MQClientAPIImpl$auxiliary$5onkBFUr.call(Unknown Source)
	at org.apache.skywalking.apm.agent.core.plugin.interceptor.enhance.InstMethodsInter.intercept(InstMethodsInter.java:86)
	at org.apache.rocketmq.client.impl.MQClientAPIImpl.sendMessage(MQClientAPIImpl.java)
	at org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl.sendKernelImpl(DefaultMQProducerImpl.java:765)
	at org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl.sendDefaultImpl(DefaultMQProducerImpl.java:529)
	... 7 common frames omitted

The RemotingConnectException caused by: throw new RemotingConnectException(addr);

    @Override
    public void invokeAsync(String addr, RemotingCommand request, long timeoutMillis, InvokeCallback invokeCallback)
        throws InterruptedException, RemotingConnectException, RemotingTooMuchRequestException, RemotingTimeoutException,
        RemotingSendRequestException {
        long beginStartTime = System.currentTimeMillis();
        final Channel channel = this.getAndCreateChannel(addr);
        if (channel != null && channel.isActive()) {
            try {
                doBeforeRpcHooks(addr, request);
                long costTime = System.currentTimeMillis() - beginStartTime;
                if (timeoutMillis < costTime) {
                    throw new RemotingTooMuchRequestException("invokeAsync call timeout");
                }
                this.invokeAsyncImpl(channel, request, timeoutMillis - costTime, invokeCallback);
            } catch (RemotingSendRequestException e) {
                log.warn("invokeAsync: send request exception, so close the channel[{}]", addr);
                this.closeChannel(addr, channel);
                throw e;
            }
        } else {
            this.closeChannel(addr, channel);
            throw new RemotingConnectException(addr);
        }
    }

CommunicationMode.Async retry times is 1, when throws RemotingConnectException can not retry.

private SendResult sendDefaultImpl(
        Message msg,
        final CommunicationMode communicationMode,
        final SendCallback sendCallback,
        final long timeout
    ) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        this.makeSureStateOK();
        Validators.checkMessage(msg, this.defaultMQProducer);
        final long invokeID = random.nextLong();
        long beginTimestampFirst = System.currentTimeMillis();
        long beginTimestampPrev = beginTimestampFirst;
        long endTimestamp = beginTimestampFirst;
        TopicPublishInfo topicPublishInfo = this.tryToFindTopicPublishInfo(msg.getTopic());
        if (topicPublishInfo != null && topicPublishInfo.ok()) {
            boolean callTimeout = false;
            MessageQueue mq = null;
            Exception exception = null;
            SendResult sendResult = null;
            int timesTotal = communicationMode == CommunicationMode.SYNC ? 1 + this.defaultMQProducer.getRetryTimesWhenSendFailed() : 1;
            int times = 0;
            String[] brokersSent = new String[timesTotal];
            for (; times < timesTotal; times++) {
                String lastBrokerName = null == mq ? null : mq.getBrokerName();
                MessageQueue mqSelected = this.selectOneMessageQueue(topicPublishInfo, lastBrokerName);
                if (mqSelected != null) {
                    mq = mqSelected;
                    brokersSent[times] = mq.getBrokerName();
                    try {
                        beginTimestampPrev = System.currentTimeMillis();
                        if (times > 0) {
                            //Reset topic with namespace during resend.
                            msg.setTopic(this.defaultMQProducer.withNamespace(msg.getTopic()));
                        }
                        long costTime = beginTimestampPrev - beginTimestampFirst;
                        if (timeout < costTime) {
                            callTimeout = true;
                            break;
                        }

                        sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout - costTime);
                        endTimestamp = System.currentTimeMillis();
                        this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
                        switch (communicationMode) {
                            case ASYNC:
                                return null;
                            case ONEWAY:
                                return null;
                            case SYNC:
                                if (sendResult.getSendStatus() != SendStatus.SEND_OK) {
                                    if (this.defaultMQProducer.isRetryAnotherBrokerWhenNotStoreOK()) {
                                        continue;
                                    }
                                }

                                return sendResult;
                            default:
                                break;
                        }
                    } catch (RemotingException | MQClientException e) {
                        endTimestamp = System.currentTimeMillis();
                        this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
                        log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
                        log.warn(msg.toString());
                        exception = e;
                        continue;
                    } catch (MQBrokerException e) {
                        endTimestamp = System.currentTimeMillis();
                        this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
                        log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
                        log.warn(msg.toString());
                        exception = e;
                        if (this.defaultMQProducer.getRetryResponseCodes().contains(e.getResponseCode())) {
                            continue;
                        } else {
                            if (sendResult != null) {
                                return sendResult;
                            }

                            throw e;
                        }
                    } catch (InterruptedException e) {
                        endTimestamp = System.currentTimeMillis();
                        this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
                        log.warn(String.format("sendKernelImpl exception, throw exception, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
                        log.warn(msg.toString());

                        log.warn("sendKernelImpl exception", e);
                        log.warn(msg.toString());
                        throw e;
                    }
                } else {
                    break;
                }
            }

            if (sendResult != null) {
                return sendResult;
            }

            String info = String.format("Send [%d] times, still failed, cost [%d]ms, Topic: %s, BrokersSent: %s",
                times,
                System.currentTimeMillis() - beginTimestampFirst,
                msg.getTopic(),
                Arrays.toString(brokersSent));

            info += FAQUrl.suggestTodo(FAQUrl.SEND_MSG_FAILED);

            MQClientException mqClientException = new MQClientException(info, exception);
            if (callTimeout) {
                throw new RemotingTooMuchRequestException("sendDefaultImpl call timeout");
            }

            if (exception instanceof MQBrokerException) {
                mqClientException.setResponseCode(((MQBrokerException) exception).getResponseCode());
            } else if (exception instanceof RemotingConnectException) {
                mqClientException.setResponseCode(ClientErrorCode.CONNECT_BROKER_EXCEPTION);
            } else if (exception instanceof RemotingTimeoutException) {
                mqClientException.setResponseCode(ClientErrorCode.ACCESS_BROKER_TIMEOUT);
            } else if (exception instanceof MQClientException) {
                mqClientException.setResponseCode(ClientErrorCode.BROKER_NOT_EXIST_EXCEPTION);
            }

            throw mqClientException;
        }

        validateNameServerSetting();

        throw new MQClientException("No route info of this topic: " + msg.getTopic() + FAQUrl.suggestTodo(FAQUrl.NO_TOPIC_ROUTE_INFO),
            null).setResponseCode(ClientErrorCode.NOT_FOUND_TOPIC_EXCEPTION);
    }

coveralls · 2021-11-30T09:29:30Z

Coverage decreased (-2.2%) to 51.08% when pulling 895decb on lwclover:develop into 28d7849 on apache:develop.

codecov-commenter · 2021-11-30T09:29:41Z

Codecov Report

Merging #3555 (895decb) into develop (28d7849) will decrease coverage by 0.30%.
The diff coverage is 35.89%.

@@              Coverage Diff              @@
##             develop    #3555      +/-   ##
=============================================
- Coverage      47.32%   47.02%   -0.31%
+ Complexity      5038     4858     -180
=============================================
  Files            627      636       +9
  Lines          41348    42249     +901
  Branches        5372     5521     +149
=============================================
+ Hits           19568    19867     +299
- Misses         19356    19891     +535
- Partials        2424     2491      +67

Impacted Files	Coverage Δ
...g/apache/rocketmq/client/impl/MQClientAPIImpl.java	`13.98% <35.89%> (+1.10%)`	⬆️
...ketmq/common/protocol/body/ConsumerConnection.java	`95.83% <0.00%> (-4.17%)`	⬇️
...a/org/apache/rocketmq/filter/util/BloomFilter.java	`59.13% <0.00%> (-2.16%)`	⬇️
...ava/org/apache/rocketmq/filter/util/BitsArray.java	`58.11% <0.00%> (-1.71%)`	⬇️
...a/org/apache/rocketmq/store/StoreStatsService.java	`28.66% <0.00%> (-1.31%)`	⬇️
...a/org/apache/rocketmq/broker/BrokerController.java	`46.54% <0.00%> (-0.89%)`	⬇️
...org/apache/rocketmq/store/DefaultMessageStore.java	`55.48% <0.00%> (-0.76%)`	⬇️
...e/rocketmq/client/impl/consumer/RebalanceImpl.java	`42.18% <0.00%> (-0.40%)`	⬇️
...ocketmq/broker/processor/SendMessageProcessor.java	`39.59% <0.00%> (-0.30%)`	⬇️
...java/org/apache/rocketmq/broker/BrokerStartup.java	`5.47% <0.00%> (-0.20%)`	⬇️
... and 28 more

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 28d7849...895decb. Read the comment docs.

XiaoyiPeng · 2021-11-30T10:31:17Z

Asynchronous retry is here, in class DefaultMQProducerImpl, line: 843

private SendResult sendKernelImpl(final Message msg,
        final MessageQueue mq,
        final CommunicationMode communicationMode,
        final SendCallback sendCallback,
        final TopicPublishInfo topicPublishInfo,
        final long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
// ...
// line#843:
sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
                            brokerAddr,
                            mq.getBrokerName(),
                            tmpMessage,
                            requestHeader,
                            timeout - costTimeAsync,
                            communicationMode,
                            sendCallback,
                            topicPublishInfo,
                            this.mQClientFactory,
                            this.defaultMQProducer.getRetryTimesWhenSendAsyncFailed(),
                            context,
                            this);

}

lwclover · 2021-12-01T01:43:43Z

sendKernelImpl

This is when the broker can connect to, But when can not connect to the broker, can not retry

guyinyou · 2021-12-03T09:54:59Z

In the asynchronous sending mode, the sendCallBack function will be called back after the message fails to be sent, and it can be re-sent inside.

lwclover · 2021-12-06T01:19:29Z

In the asynchronous sending mode, the sendCallBack function will be called back after the message fails to be sent, and it can be re-sent inside.

the code 'if (channel != null && channel.isActive()) ' return false, it direct throws RemotingConnectException

guyinyou · 2021-12-06T03:31:50Z

In the asynchronous sending mode, the sendCallBack function will be called back after the message fails to be sent, and it can be re-sent inside.

the code 'if (channel != null && channel.isActive()) ' return false, it direct throws RemotingConnectException

I know what you mean, but if you increase the timesTotal in "for (; times < timesTotal; times++) , the number of retries will become retryTimesWhenSendAsyncFailed² times. Because in addition to the situation you described, there will be retryTimesWhenSendAsyncFailed retry attempts at "this.mQClientFactory.getMQClientAPIImpl().sendMessage"

Git-Yang · 2021-12-06T06:15:15Z

Agree, in the asynchronous sending mode, there is no retry when the connection establishment fails, and only when the request and response fail.

lwclover · 2021-12-06T10:25:20Z

In the asynchronous sending mode, the sendCallBack function will be called back after the message fails to be sent, and it can be re-sent inside.

the code 'if (channel != null && channel.isActive()) ' return false, it direct throws RemotingConnectException

I know what you mean, but if you increase the timesTotal in "for (; times < timesTotal; times++) , the number of retries will become retryTimesWhenSendAsyncFailed² times. Because in addition to the situation you described, there will be retryTimesWhenSendAsyncFailed retry attempts at "this.mQClientFactory.getMQClientAPIImpl().sendMessage"

No, after trying retryTimesWhenSendAsyncFailed times, it calls callback.onException method.

lwclover · 2021-12-06T10:27:20Z

Agree, in the asynchronous sending mode, there is no retry when the connection establishment fails, and only when the request and response fail.

Thank you for labeling the bug

lwclover · 2021-12-16T01:21:48Z

@duhenglucky

MatrixHB · 2021-12-17T12:20:49Z

@lwclover you are right.
When the channel to the broker cannot be established, it will directly enter the following code block.

Retry for send async is made for the execution of "org.apache.rocketmq.remoting.netty.NettyRemotingAbstract#invokeAsyncImpl", but in the given case, "invokeAsyncImpl" has not been executed yet.

client/src/main/java/org/apache/rocketmq/client/impl/producer/DefaultMQProducerImpl.java

guyinyou · 2021-12-27T13:06:11Z

In the asynchronous sending mode, the sendCallBack function will be called back after the message fails to be sent, and it can be re-sent inside.

the code 'if (channel != null && channel.isActive()) ' return false, it direct throws RemotingConnectException

I know what you mean, but if you increase the timesTotal in "for (; times < timesTotal; times++) , the number of retries will become retryTimesWhenSendAsyncFailed² times. Because in addition to the situation you described, there will be retryTimesWhenSendAsyncFailed retry attempts at "this.mQClientFactory.getMQClientAPIImpl().sendMessage"

In the asynchronous sending mode, the sendCallBack function will be called back after the message fails to be sent, and it can be re-sent inside.

the code 'if (channel != null && channel.isActive()) ' return false, it direct throws RemotingConnectException

I know what you mean, but if you increase the timesTotal in "for (; times < timesTotal; times++) , the number of retries will become retryTimesWhenSendAsyncFailed² times. Because in addition to the situation you described, there will be retryTimesWhenSendAsyncFailed retry attempts at "this.mQClientFactory.getMQClientAPIImpl().sendMessage"

No, after trying retryTimesWhenSendAsyncFailed times, it calls callback.onException method.

You are right. I looked at the code. Asynchronous sending will only go through the for loop when an exception is thrown. In other cases, it will only be executed once and return.

vongosling · 2021-12-28T00:57:08Z

Backoff strategy optimization is one of the spots that I would most like to see in RocketMQ. You should consider the retry tuple in here, when you get callback invoked. you have finished the retry in async mode.

guyinyou · 2021-12-28T03:57:39Z

It is feasible to try the "try catch" way proposed by @duhenglucky . This way can converge anomalies to one place for processing.

client/src/main/java/org/apache/rocketmq/client/impl/MQClientAPIImpl.java

duhenglucky · 2022-01-12T02:54:39Z

@lwclover Would you like to pay more attention to the failed tests： MQClientAPIImplTest.testSendMessageAsync_WithException:201 » NullPointer

…retry under Async send model (apache#3555)

fix:when broker is down,async send model can not retry

559d136

lwclover changed the title ~~Under async send modelwhen broker is down, can not retry~~ When broker is down, rocketmq client can not retry under Async send model Nov 30, 2021

lwclover changed the title ~~When broker is down, rocketmq client can not retry under Async send model~~ Issue[#3556]When broker is down, rocketmq client can not retry under Async send model Nov 30, 2021

lwclover changed the title ~~Issue[#3556]When broker is down, rocketmq client can not retry under Async send model~~ [Issue #3556]When broker is down, rocketmq client can not retry under Async send model Nov 30, 2021

lwclover changed the title ~~[Issue #3556]When broker is down, rocketmq client can not retry under Async send model~~ [Issue #3556] Fix:When broker is down, rocketmq client can not retry under Async send model Nov 30, 2021

Git-Yang added the type/bug label Dec 6, 2021

duhenglucky added the module/client label Dec 24, 2021

duhenglucky added this to the 4.9.3 milestone Dec 27, 2021

duhenglucky reviewed Dec 27, 2021

View reviewed changes

client/src/main/java/org/apache/rocketmq/client/impl/producer/DefaultMQProducerImpl.java Outdated Show resolved Hide resolved

vongosling added the type/enhancement label Dec 28, 2021

Merge branch 'apache:develop' into develop

54f6730

fix Issue #3556

7bb99a7

guyinyou approved these changes Dec 28, 2021

View reviewed changes

fix Issue #3556

a67469e

guyinyou approved these changes Dec 28, 2021

View reviewed changes

lwclover requested a review from duhenglucky December 28, 2021 09:14

duhenglucky reviewed Dec 28, 2021

View reviewed changes

client/src/main/java/org/apache/rocketmq/client/impl/MQClientAPIImpl.java Outdated Show resolved Hide resolved

lwclover added 2 commits December 28, 2021 19:08

fix Issue #3556

1e5878d

fix Issue #3556

a0b2bd7

lwclover requested a review from duhenglucky December 29, 2021 06:48

duhenglucky approved these changes Jan 12, 2022

View reviewed changes

lwclover closed this Jan 12, 2022

lwclover reopened this Jan 12, 2022

async send model success retry when occurs Exception

c424e1a

odbozhou approved these changes Jan 13, 2022

View reviewed changes

lwclover added 2 commits January 14, 2022 09:17

test case testSendMessageAsync_WithException

4c9d301

modify test case testSendMessageAsync_WithException

895decb

caigy approved these changes Jan 14, 2022

View reviewed changes

lwclover closed this Jan 14, 2022

lwclover reopened this Jan 14, 2022

lwclover closed this Jan 14, 2022

lwclover reopened this Jan 14, 2022

odbozhou merged commit 80bcfbc into apache:develop Jan 14, 2022

devfat pushed a commit to devfat/rocketmq that referenced this pull request Mar 3, 2022

[Issue apache#3556] Fix:When broker is down, rocketmq client can not …

58edec0

…retry under Async send model (apache#3555)

duhenglucky mentioned this pull request Aug 2, 2022

When the broker master fails，return timeout，Client will not retry. #4720

Closed

GenerousMan pushed a commit to GenerousMan/rocketmq that referenced this pull request Aug 12, 2022

[Issue apache#3556] Fix:When broker is down, rocketmq client can not …

5e7bc7b

…retry under Async send model (apache#3555)

carlvine500 pushed a commit to carlvine500/rocketmq-apache that referenced this pull request Sep 10, 2024

[Issue apache#3556] Fix:When broker is down, rocketmq client can not …

82ef4ff

…retry under Async send model (apache#3555)

[Issue #3556] Fix:When broker is down, rocketmq client can not retry under Async send model #3555

[Issue #3556] Fix:When broker is down, rocketmq client can not retry under Async send model #3555

Uh oh!

Conversation

lwclover commented Nov 30, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

coveralls commented Nov 30, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

codecov-commenter commented Nov 30, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Codecov Report

Uh oh!

XiaoyiPeng commented Nov 30, 2021

Uh oh!

lwclover commented Dec 1, 2021

Uh oh!

guyinyou commented Dec 3, 2021

Uh oh!

lwclover commented Dec 6, 2021

Uh oh!

guyinyou commented Dec 6, 2021

Uh oh!

Git-Yang commented Dec 6, 2021

Uh oh!

lwclover commented Dec 6, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

lwclover commented Dec 6, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

lwclover commented Dec 16, 2021

Uh oh!

MatrixHB commented Dec 17, 2021

Uh oh!

Uh oh!

guyinyou commented Dec 27, 2021

Uh oh!

vongosling commented Dec 28, 2021

Uh oh!

guyinyou commented Dec 28, 2021

Uh oh!

Uh oh!

duhenglucky commented Jan 12, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

Uh oh!

lwclover commented Nov 30, 2021 •

edited

Loading

coveralls commented Nov 30, 2021 •

edited

Loading

codecov-commenter commented Nov 30, 2021 •

edited

Loading

lwclover commented Dec 6, 2021 •

edited

Loading

lwclover commented Dec 6, 2021 •

edited

Loading

duhenglucky commented Jan 12, 2022 •

edited

Loading
