Update CanvasKit to 0.7.0 and flesh out painting #13240

Merged
merged 4 commits into from
Oct 21, 2019
Merged

Update CanvasKit to 0.7.0 and flesh out painting #13240

merged 4 commits into from
Oct 21, 2019

Conversation

harryterkelsen
Copy link
Contributor

This allows us to fix some bugs in the CanvasKit backend.

  • Implement RRect where the radii are different
  • Implement drawDRRect
  • Implement ColorFilter
  • Implement the correct arcTo for arcToPoint

Screenshots

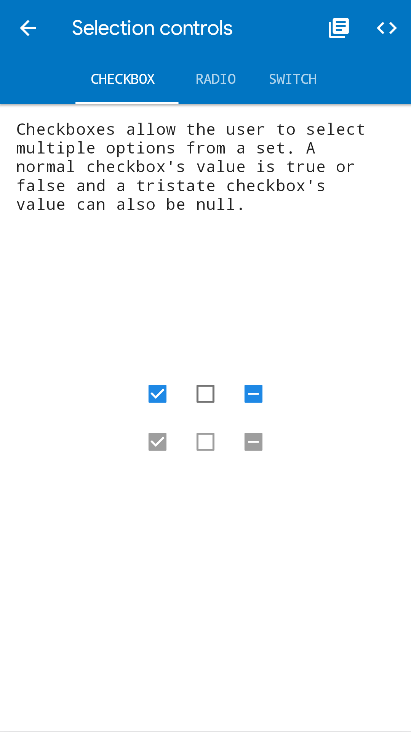

Using drawDRRect for checkboxes

drrect

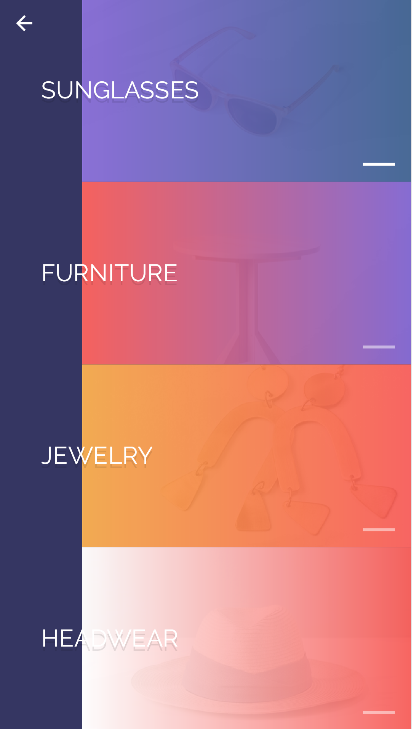

Showing ColorFilter in the "Animation" demo

colorfilter

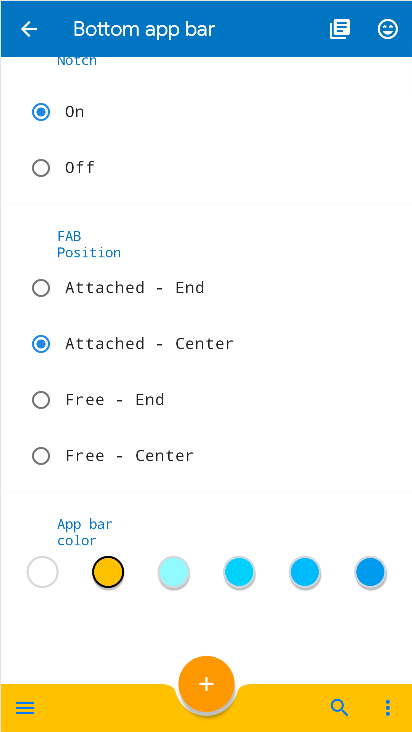

Using correct arcTo to get the correct notch under the FAB

correctnotch

@harryterkelsen
Update CanvasKit to 0.7.0 and flesh out painting
bd0fa6a
This allows us to fix some bugs in the CanvasKit backend.

- Implement RRect where the radii are different
- Implement drawDRRect
- Implement ColorFilter
- Implement the correct `arcTo` for `arcToPoint`
yjbanov
yjbanov approved these changes Oct 19, 2019
View reviewed changes
lib/web_ui/lib/src/engine/compositor/color_filter.dart
final js.JsArray colorMatrix = js.JsArray();
colorMatrix.length = 20;
for (int i = 0; i < 20; i++) {
colorMatrix[i] = filter._matrix[i];
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Let's leave a todo to remove this double-conversion. This should, at least, convert straight to a Float64List, but ideally we should write to WASM memory directly.

/cc @kjlubick - here's an example for excessive conversion that we talked about at the last sync.

Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Done.

lib/web_ui/lib/src/engine/compositor/initialization.dart Outdated
@@ -6,10 +6,10 @@ part of engine;

/// EXPERIMENTAL: Enable the Skia-based rendering backend.
const bool experimentalUseSkia =
bool.fromEnvironment('FLUTTER_WEB_USE_SKIA', defaultValue: false);
bool.fromEnvironment('FLUTTER_WEB_USE_SKIA', defaultValue: true);
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

We probably want to keep this as false.

BTW, have you checked the code size difference with and without this backend? If the size difference is small (say <50KB gzipped), I'd say let's make it a dynamic option. I imagine most of the size cost is from the WASM blob, not from Dart code.

Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

I'll investigate after landing this PR

@harryterkelsen
Respond to review comments
3886e77
- Add TODO to avoid unnecessary conversions
- Don't set CanvasKit to default
- Fix licenses file
@harryterkelsen
Add ==, hashCode, and toString back to ColorFilter API
5009533
@harryterkelsen harryterkelsen merged commit 5cc7416 into flutter:master Oct 21, 2019
@harryterkelsen harryterkelsen deleted the canvaskit-0.7.0 branch October 21, 2019 19:44
