Skills Don't Always Create Correct Connectors on Outbound Replies

[Zerryth]

Deep breath. Tedious to debug, because it was like bot-ception 😓 😵

Version

dotnet 4.7

Describe the bug

Channel --> Consumer --> Skill1 --> Skill2

In BF we create Connectors to send replies. The current Skills model makes the creation of the Connector on inbound Activity processing, caching that Connector, then on outbound we grab what's cached to send a reply. Since caches are local to the instance, this model will break in the following scenarios:

• If any of the bots that are in a chained skills scenario have multiple instances (for example, inbound Activity-processing instance of Skill1 and an outbound Activity-processing instance of Skill1)
• If a parent reboots, it loses its cache of Connector Clients

The fallback pattern of creating Connectors also malforms the OAuthScope of the Credentials on the Connectors, always defaulting to api.botframework.com instead of being the AppId of the bot we want to reply to.

Expected Behavior

To be able to send replies in all scenarios, including when there are multiple instances of a Skill or if a parent bot gets restarted.
More specifically, to create connector clients that are properly scoped on outbound replies.

---

Repro

Create a bot that calls a skill, which calls another skill.

For this test I just made EchoSkillBot call another EchoSkillBot.

Scenario where replies break

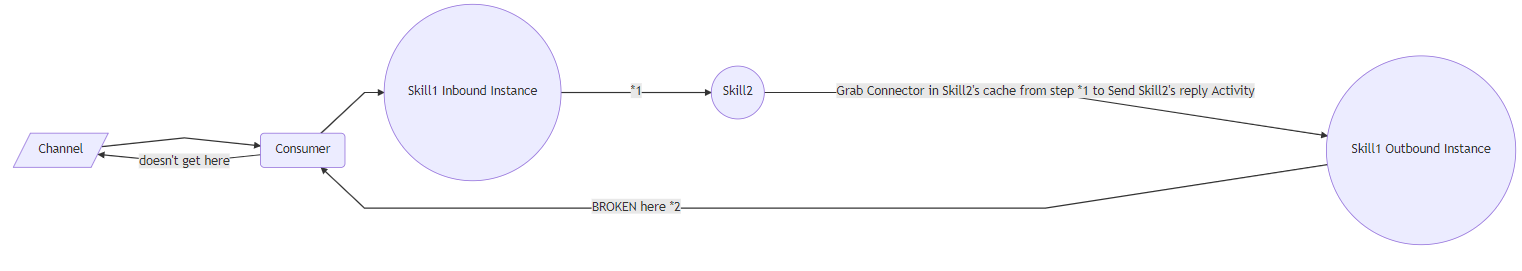

Having 2 instances of Skill1 -- one to process inbound activities, a second to process outbound activities

2. Skill2 sends its reply to Skill1's SkillHandler, which eventually calls ContinueConversationAsync():
   • EnsureChannelConnectorClientIsCreatedAsync()
     • Nothing in outbound instance of Skill1's cache
     • Therefore it creates and caches a new Connector that has:
       • BaseUri that points to Consumer
       • BUT Credentials that have default OAuthScope (api.botframework.com, the BF Channel Service layer b/t Consumer and Channel)
       • (we want scope to be Consumer's AppId to go from Skill1 to Consumer)
   • CreateConnectorClientAsync()
     • Creates and caches Skill1-to-Skill2 Credentials. We don't use these.
     • Always instead grabs the cached Connector that was just previously created 1 step before in EnsureChannelConnectorClientIsCreatedAsync()

Click to view screenshots

Skill1 - outbound instance

• EnsureChannelConnectorClientIsCreatedAsync()

  • Creates AppCredentials, as 2nd instance of Skill1 does not have anything in its AppCredentials cache:

    •

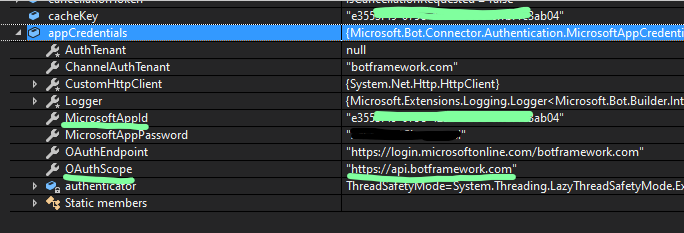

      • Note it's scoped to api.botframework.com by default

  • Creates Connector Client, as there's nothing in its Connector Clients cache:

    •

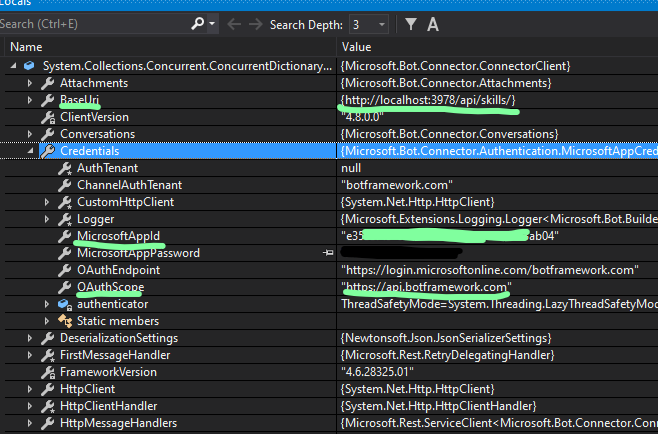

      • Note how it has Skill1 as MicrosoftAppId, but has default OAuthScope of api.botframework.com (Skill1-to-Channel replies, skipping Consumer if it actually had right BaseUri)

• CreateConnectorClient()

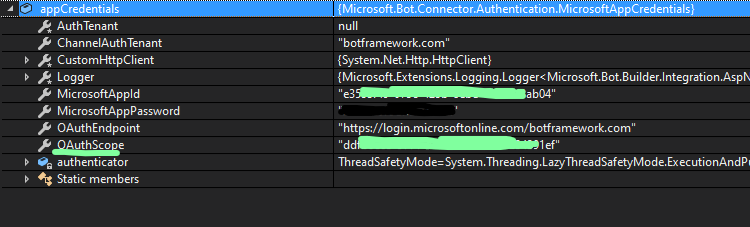

  • Creates Skill1-to-Skill2 AppCredentials:

    •

  • Always grabs Connector that it just cached in the previous EnsureChannelConnectorClientIsCreatedAsync() step:

    •

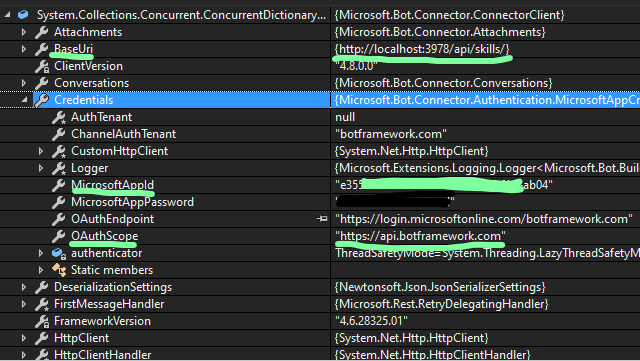

      • Note that it thus creates a Connector that is directed via BaseUri to the Consumer, but the Credentials are not valid for Skill1-to-Consumer replying
      • Instead Credentials have default scope of api.botframework.com (we want it to be Consumer's AppId)

---

Additional Info on Pattern

Happy path - chaining Skills with only single instance of each bot

Overview of Chaining 2 EchoSkillBots

Request Details of Chaining Skills

Summary of Connector creation and usage pattern in Skills:

• Create properly-scoped Connector on inbound Activity processing. Cache it.
• On outbound, grab cached Connector to reply

Click to view full details of single-instance scenario of chaining Skills

1. Creates ConnectorClient with AppCredentials and BaseUri for Skill1-to-Consumer replies

   • Credentials:
     • MicrosoftAppId: Skill1's AppId
     • OAuthScope: Consumer's AppId
   • BaseUri:
     • Used in Connectors to build the serviceUrl to send replies
     • The URI is to the Consumer's endpoint that handles skills

2. Creates AppCredentials, which it uses to get a Token from Skill1 to POST to Skill2 (we're inside Skill1):

   • MicrosoftAppId: Skill1's AppId
   • OAuthScope: Skill2's AppId
   • POST http://localhost:39782/api/messages (Skill2's BotController endpoint)

3. Inbound, inside Skill2

   • Creates Connector with AppCredentials that correctly allows for Skill2-to-Skill1 replies
     • MicrosoftAPpId: Skill2's AppId
     • OAuthScope: Skill1's AppId
   • Caches Skill2-to-Skill1 Connector

4. Inside Skill2: Grabs the Skill2-to-Skill1 Connector from TurnState, created on the inbound call in *3

   • POST "http://localhost:39781/api/skills/v3/conversations/{Skill1-and-Skill2-ConvoId}/activities/{activityId}" (Skill1's Skill Handler endpoint)

5. Skill1's SkillHandler eventually calls ContinueConversationAsync() so that it could eventually RunPipelineAsync() to forward Skill2's message to Consumer

   • Calls EnsureChannelConnectorClientIsCreatedAsync() to make AppCredentials that are scoped to default api.botframework.com (BF Channel Service)
     • Does not use these Channel-scoped Credentials on the Connector it creates, however.
     • Instead it grabs the Connector that was cached in step 1, which is scoped correctly to the Consumer for outbound reply from Skill1
   • Next calls CreateConnectorClientAsync()
     • It grabs the Connector that was cached in step 1, once again

6. POST "http://localhost:3978/api/skills/v3/conversations/{Consumer-and-Skill1-ConvoId}/activities/{activityId}" to forward Skill2's message from Skill1 to Consumer, using Connector from step *5

7. Consumer's SkillHandler eventually calls ContinueConversationAsync() so that it could eventually RunPipelineAsync() to forward Skill2's message to Channel

   • Calls EnsureChannelConnectorClientIsCreatedAsync()
     • Gets cached AppCredentials scoped from Consumer-to-Channel (Created on first inbound Channel-to-Consumer ProcessActivityAsync())
     • Grabs cached Connector scoped from Consumer-to-Channel
   • Calls CreateConnectorClientAsync()
     • Gets cached AppCredentials scoped from Consumer-to-Skill1. It does not use these credentials on the outbound reply right now.
     • Grabs cached Connector that has credentials scoped from Consumer-to-Channel

8. POST "http://localhost:61007/v3/conversations/{Consumer-and-Channel-ConvoId}/activities/{activityId}" to finally forward Skill2's reply to the User at the Channel

[Zerryth]

Testing above also done using Gabo's updated skills conversation id factory using Cosmos DB, to get passed the error you encounter in multi-instance skills, where it can't get the id from convo reference
