Toggleable item supportΒ #185

@jtreminio

Description

@jtreminio

edit: This comment out of date. This is now a PR ticket. See comment #185 (comment)


Currently item rows look like

{marker}  {text}                      {optional item extra}

The marker property seems to only be toggable on highlighting a row. It is not aware of state, nor can it be changed once the menu is displayed.

My goal is to add checkbox-style visuals to this library.

With the following code, you can display a "checkbox" when an item was previously selected:

    $itemCallable = function (CliMenu $menu) {
        $item = $menu->getSelectedItem();

        $key = array_search($item, $this->selected);
        if ($key !== false) {
            $item->hideItemExtra();
            unset($this->selected[$key]);
        } else {
            $item->showItemExtra();
            $this->selected[] = $item;
        }

        $menu->redraw();
    };

    $builder = (new CliMenuBuilder)
        ->setBackgroundColour('black')
        ->setForegroundColour('green');

    $menu = $builder->setTitle('Create a New Project')
        ->addLineBreak()
        ->addStaticItem('Select Language')
        ->addItem('PHP', $itemCallable, true)
        ->addItem('Javascript', $itemCallable, true)
        ->addItem('Ruby', $itemCallable, true)
        ->addItem('Python', $itemCallable, true)
        ->addItem('Go', $itemCallable, true)
        ->addLineBreak('-')
        ->build();

    // See https://github.com/php-school/cli-menu/issues/184
    foreach ($menu->getItems() as $item) {
        $item->hideItemExtra();
    }

    $menu->open();

    foreach ($this->selected as $item) {
        var_dump($item->getText());
    }

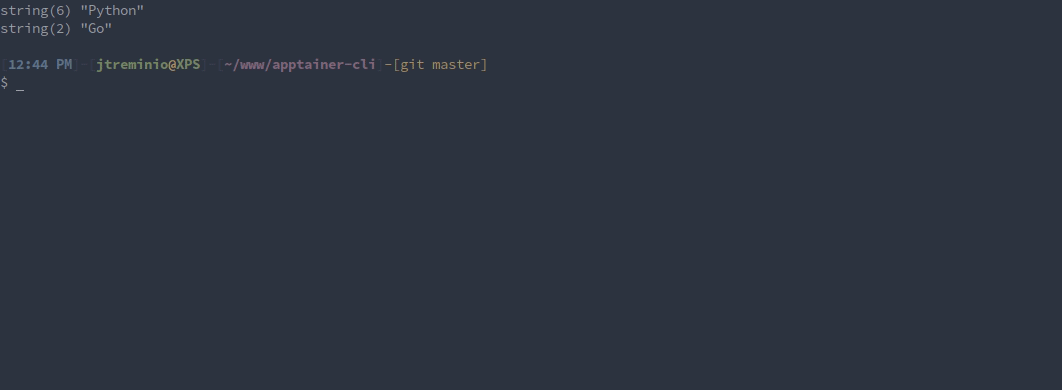

This produces the following:

Peek 2019-12-15 12-45

Unfortunately the item-extra string is pushed to the far right of the element. For one or two elements it might be fine, but for longer lists this could get a little confusing.

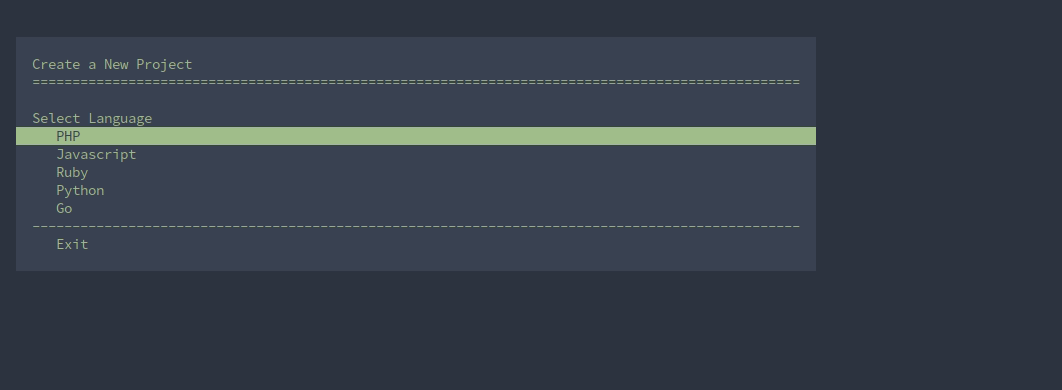

Instead, making it so the item-extra is to the left of the string, and hiding the marker makes it a nicer experience:

Peek 2019-12-15 12-47

This is achieved by modifying getRows(): https://github.com/php-school/cli-menu/blob/master/src/MenuItem/SelectableTrait.php#L31

public function getRows(MenuStyle $style, bool $selected = false) : array
{
    $marker = sprintf("%s", $style->getMarker($selected));

    $length = $style->getDisplaysExtra()
        ? $style->getContentWidth() - (mb_strlen($style->getItemExtra()) + 2)
        : $style->getContentWidth();

    $rows = explode(
        "\n",
        StringUtil::wordwrap(
            sprintf('%s', $this->text),
            $length,
            sprintf("\n%s", str_repeat(' ', mb_strlen($marker)))
        )
    );

    return array_map(function ($row, $key) use ($style, $length) {
        $text = $this->disabled ? $style->getDisabledItemText($row) : $row;

        if ($key === 0) {
            return $this->showItemExtra
                ? sprintf('%s  %s',
                    $style->getItemExtra(),
                    $text
                )
                : sprintf('%s  %s',
                    str_repeat(' ', mb_strlen($style->getItemExtra())),
                    $text
                );
        }

        return $text;
    }, $rows, array_keys($rows));
}

I think it would be better to show a different item-extra when not selected:

[ ]  Item not selected
[βœ”]  Item selected

From a technical standpoint, the marker item would make more sense to refactor, giving it state-awareness (am I toggled even if I'm not highlighted?), giving it a different value for "toggled but not highlighted", and a value for "toggled and highlighted".

However, it seems the marker is at a much more static state than item-extra, and thus adding ability to pass in a custom parser for getRows() to use makes more sense.

Since getRows() is not mutating data but returning a new array, all current properties can remain protected. Simply creating an interface for a parser to receive data, and return expected data would work.

Your thoughts?
