Conversation

oke-aditya
Copy link
Contributor

@oke-aditya oke-aditya commented Dec 25, 2021

Closes #4528 Supersedes #4658

Work in progress will detail it soon.
Done! awaiting review.

:) Feels so good to be healthy and code again.

cc @pmeier (I guess Nicolas will return next week)

@facebook-github-bot
Copy link

facebook-github-bot commented Dec 25, 2021

💊 CI failures summary and remediations

As of commit 056a033 (more details on the Dr. CI page):


  • 1/1 failures introduced in this PR

1 failure not recognized by patterns:

Job Step Action
CircleCI cmake_macos_cpu curl -o conda.sh https://repo.anaconda.com/miniconda/Miniconda3-latest-MacOSX-x86_64.sh
sh conda.sh -b
source $HOME/miniconda3/bin/activate
conda install -yq conda-build cmake
packaging/build_cmake.sh
🔁 rerun

This comment was automatically generated by Dr. CI (expand for details).

Please report bugs/suggestions to the (internal) Dr. CI Users group.

Click here to manually regenerate this comment.

Copy link
Contributor Author

@oke-aditya oke-aditya left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Hi! This does the job! I verified the outputs over test cases. Will post the same here.

@oke-aditya oke-aditya changed the title [WIP] Adds Random colors in utilities. Random colors for drawing boxes Adds Random colors in utilities. Random colors for drawing boxes Dec 27, 2021
@oke-aditya oke-aditya marked this pull request as ready for review December 27, 2021 09:48
@oke-aditya
Copy link
Contributor Author

Script to test the same. Choice of boxes can be improved. :)

dog1_int = read_image('dog1.jpg')
dog2_int = read_image('dog2.jpg')

boxes = torch.tensor(
    [
        [50, 50, 100, 200],
        [210, 150, 350, 430],
        [150, 30, 200, 150],
        [20, 30, 70, 80],
        [80, 90, 100, 100],
        [1, 5, 3, 8],
    ]
    , dtype=torch.float
)

print(boxes.size(0))

# # No labels and no colors
result = draw_bounding_boxes(dog1_int, boxes, width=3, font_size=10, fill=True)
show(result)

# # No labels and colors. len colors == no of boxes.
colors = ["blue", "yellow", "red", "orange", "pink", "brown", "pink", "black"]
result = draw_bounding_boxes(dog1_int, boxes, colors=colors, width=3, font_size=10, fill=True)
show(result)

# Labels and no colors
labels = ["l1", "l3", "l3", "l2", "l1", "l3"]
# labels_wrong = ["l3", "l1"]
result = draw_bounding_boxes(dog1_int, boxes, labels=labels, width=3, font_size=10, fill=True)
show(result)


# Labels and colors
labels = ["l1", "l3", "l3", "l2", "l1", "l3"]
colors = ["blue", "yellow", "red", "orange", "pink", "brown"]
result = draw_bounding_boxes(dog1_int, boxes, colors=colors, labels=labels, width=3, font_size=10, fill=True)
show(result)

Case 1: -
No labels and no colors.
Random colors are generated.

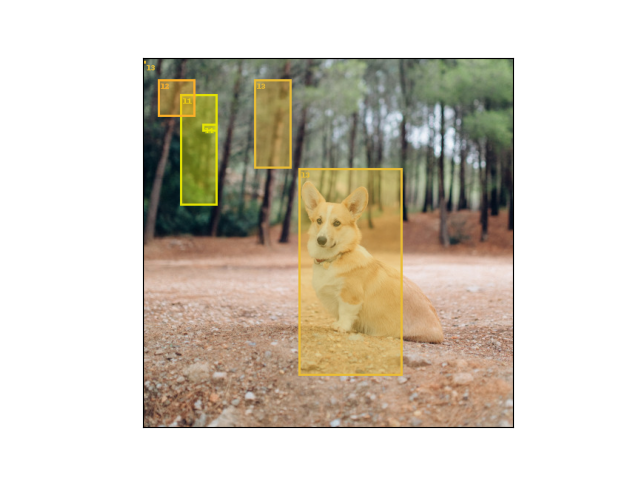

Figure_1

Case 2: -
No labels but colors.
Just allocate the pre-defined colors.

Figure_2

Case 3: -
Labels but no colors.
Boxes with same labels have same colors.

Figure_3

Case 4: -
Labels and colors
Just put the defined labels and colors.

Figure_4

Copy link
Collaborator

@pmeier pmeier left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Thanks @oke-aditya for the PR. Given that this was originally discussed with @NicolasHug, we should wait for his review.

In general though, I'm not sure why we want to have a random color palette by default. I fully agree it is better than using only white for everything, but I'm not sure why randomizing the colors is better than fixed ones. Apart from the non-determinism, by generating the colors at random we also risk using very similar colors for different classes, which can be confusing. It is actually not easy to have multiple colors that are easily distinguishable by humans. I suggest we hardcode color maps such as this one. It "only" defines colors for 12 classes. If we need more, we can always supplement with randomly generated afterwards.

@oke-aditya
Copy link
Contributor Author

oke-aditya commented Dec 27, 2021

The color palette issue is always the concern. I don't exactly recall the conclusion from #2785 #2556 #3296.

I agree with your points. A good default palette > random palette > white.

It is possible to have one (or maybe more than one) good default color palettes, say supporting upto 12 classes.
After these we could add randomly generated colors to the palette? This can be handled easily in the code.

The problem of colors actually arises when there are many objects of different classes in the same image. I am not sure if there are cases where we have > 12 classes in same image. So I guess it should be okay if two colors are little bit close to each other. The chance of colors being close and having both the classes same is probably a bit low.
In any case (even after having a good default palette + adding random colors (if needed)) the colors are pretty close and don't appease our eyes. Re running the code with bit more luck can give better colors.

Colors is kinda hard and I don't have any great solution.

@@ -169,6 +169,8 @@ def draw_bounding_boxes(
colors (color or list of colors, optional): List containing the colors
of the boxes or single color for all boxes. The color can be represented as
PIL strings e.g. "red" or "#FF00FF", or as RGB tuples e.g. ``(240, 10, 157)``.
By default, random colors are generated for boxes.
If labels are provided, boxes with same labels have same color.
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

I'm concerned with this API change because the behaviour changes depending on whether the labels are defined. Effectively the new API tries to do things for the user instead of letting them decide what to do. I think it would be best to stick to generating a random palette for as many masks as we detected. This will be similar to what we do on the segmentation drawing tool and will enable us to reuse methods such as _generate_color_palette().

Copy link
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

@datumbox would you mind detailing what you mean by "enable us to reuse methods such as _generate_color_palette()" ?

Having one box color per label is a default behaviour that makes sense to me, and @oke-aditya followed my earlier suggestion of #4528 (comment). It avoids users some extra code.

draw_segmentation_masks() doesn't accept a label parameter, so it's not unexpected that its behaviour differs from draw_bounding_boxes() in that respect.

Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

@NicolasHug I was thinking that utils._generate_color_palette(num_masks) can be used to generate a colour per mask (not per label) as currently happens on the segmentation case.

Concerning the lack of support for labels on segmentation, this is indeed the situation with our utility but doesn't have to be the case going forwards. Other libraries such as detectron2 offer visualizations for segmentation and masks that display the labels.

TBH I haven't followed the original discussions (I try to catch up coming back from PTO). My thoughts on this is that if we want to keep the utility simple, we could let the users define one colour per mask. If they need to apply a more complex logic (such as keeping the same colour per label), this should be done outside of the utility using their own custom logic and provide the list of colours to our util. This would align the approach across segmentation and detection. Let me know your thoughts.

Copy link
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Concerning the lack of support for labels on segmentation, this is indeed the situation with our utility but doesn't have to be the case going forwards. Other libraries such as detectron2 offer visualizations for segmentation and masks that display the labels.

I agree. And if we were to support labels in draw_segmentation_masks(), I think it would also make sense to have one color per label by default :)

I also agree that complexity is a concern, both regarding the code and regarding what the user would expect from that function. As far as I can tell the only extra code that handling labels adds are these few lines below:

        if labels is not None:
            label_color_map = dict(zip(labels, colors))
            colors = [label_color_map[label] for label in labels]

which I feel is minimal.

Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Users still can draw colors for their labels. If both labels and colors are passed. The ith box would get the ith color, irrespective of the labels.
I guess the current improvement just improves how the the default colors are handled. The need to pass a color palette reduces.

@@ -317,5 +325,18 @@ def test_draw_keypoints_errors():
utils.draw_keypoints(image=img, keypoints=invalid_keypoints)


def test_random_colors():
Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Some tests so that we are OK with the implementation. I guess these aren't very necessary but anyways good to have and don't hurt much.

color_t = utils._generate_random_color()
assert isinstance(color_t, tuple)
assert len(color_t) == 3
assert 256 not in color_t
Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Checks the overflow so that we don't go beyond 256.

@oke-aditya
Copy link
Contributor Author

How should we proceed @datumbox @NicolasHug @pmeier ?

I'm bit more inclined with Philip's thoughts. While this would make visualizing boxes with same labels a bit easier. A flip side is the color palette is still messy.

In general though, I'm not sure why we want to have a random color palette by default. I fully agree it is better than using only white for everything, but I'm not sure why randomizing the colors is better than fixed ones. Apart from the non-determinism, by generating the colors at random we also risk using very similar colors for different classes, which can be confusing. It is actually not easy to have multiple colors that are easily distinguishable by humans. I suggest we hardcode color maps such as this one. It "only" defines colors for 12 classes. If we need more, we can always supplement with randomly generated afterwards.

Maybe we should have a good default color palette for say around 12 or 15 colors and then opt for random color generation?

@datumbox
Copy link
Contributor

@oke-aditya As I mentioned earlier, I recommend not handling the per-label colouring within the method but instead accepting a list of colours for each box. Having this extra assumption in the code is not worth it as there are many ways to handle colouring for "stuff vs things". For reference I provide how Detectron2 does it, which shows that a) there are many ways to achieve this and b) you need extra information to handle it effectively:

@oke-aditya
Copy link
Contributor Author

I understand your point @datumbox . We make an implicit assumption of colors and labels. Let's not think about per label coloring. Although I still feel that assuming same color for every label is something expected. Let's keep a ticket open for this and seek user feedback. (Let's not focus on this for now and move on)

This PR also tackles another issue. The default white color palette for all boxes (if no color / color palette is passed) looks bad.
Do you think it's worth replacing the default white with set of random colors?
If yes, then if labels are passed and colors aren't what should be the solution? We still fill random colors?

I believe if we don't keep the label coloring consistency, we should still consider not using plain white as default for every box.

@datumbox
Copy link
Contributor

@oke-aditya Though strictly speaking BC breaking, I don't think it would be a big problem to replace the whiles with a reasonable randomly generated palette and use the same colour both for boxes and for labels.

@NicolasHug any concerns with that?

@NicolasHug
Copy link
Member

I agree we don't need to be too strict with BC regarding the coloring strategy.

I'm not sure I fully understand the things vs stuff discussion. It seems to me that assigning one color per label could cover a lot of useful use-cases (more so than assigning random colors), but I don't want to further delay this discussion.

@pmeier
Copy link
Collaborator

pmeier commented Jan 11, 2022

reasonable randomly generated palette

That is actually quite hard. You would need to make sure that the generated colors have a reasonable "distance" between them. Thus, I would suggest to hardcode a color palette and fallback to best effort random generation, i.e. only enforcing the uniqueness of each color, if the input exceeds the number of hardcoded colors.

@datumbox
Copy link
Contributor

Indeed, it's a hard problem but we already something like that on _generate_color_palette. It produces a reasonable different colours for large number of input colours. We could use this.

@oke-aditya
Copy link
Contributor Author

The problem is kind of NP.

  1. Color spaces and colors are hard (considering all 3 should be happy. human eyes, computers and RGB)
  2. Torchvision is not a visualization library.
    Although libraries like detectron2, etc seem to focus significantly more than torchvision on visualizations.

Also provide a few color palette options like utils.get_color_palette("bright") utils.get_color_palette("dark").
These would give a good default color palette of say 10 (fixed) colors? Which users can plug into colors. And of course we have .get_random_color_palette() to get random palette (of any number of colors).

We can adopt a few palettes from seaborn. Which seem to be popular.

I'm not sure of re-using _generate_color_palette. It returns Tuple[Tensor(), Tensor(), Tensor()] and that's neessary for masks. So I won't touch that.

I agree to Phillip and this is something feasible.
By default our utils first try to use colors from one of these palettes (a fixed one) and in case there are boxes > no of colors in palette. It will continue to use random color (no choice).

(Actually here is where the assumption of one color per label could make the stuff easier. It's less likely that there are variety of objects and we would need lot of colors. More often an object will be either repeated or have num boxes < 10. But let's leave it for later discussion.)

cc @datumbox @NicolasHug @pmeier

@datumbox
Copy link
Contributor

I'm not sure of re-using _generate_color_palette. It returns Tuple[Tensor(), Tensor(), Tensor()] and that's neessary for masks. So I won't touch that.

@oke-aditya I might be missing something but aren't you the one who added the first version of _generate_color_palette on this commit 9bb4191? The snippet was refactored on a separate method but code remains mostly the same. You just return as many colours as requested, which is pretty much what we want here. Aka if the user hasn't provided labels, we can generate as many as we need for the provided number of boxes. I recall that we tested the method and it provides a reasonable palette for a sensible small number of boxes back when it was first introduced.

Torchvision is not a visualization library. Although libraries like detectron2, etc seem to focus significantly more than torchvision on visualizations.

Indeed. We need a small non-complicated utility for people to use to quickly check the model results. There are far better libraries out there for complex visualizations, with detectron2 being one of them. Instead of introducing another palette making method, I would suggest to reuse what we have. Feel free to refactor if necessary. Thankfully it's a private method so there shouldn't be any BC concerns.

one color per label could make the stuff easier.

Please have a look on the references I provided on #5127 (comment) to see how the colours of "things" and "stuff" are handled by libraries like detectron2. As you will see, they require a lot more meta-data about the labels in order to determine if they should keep the same colour for the same label (stuff) or they should produce a slightly similar colour for each instance (things). Adding this logic in our method, without having access to these meta-data is limiting. Hence my preference not to try to do complex things and keep the behaviour simple.

@oke-aditya
Copy link
Contributor Author

I guess we can go ahead with this :) Sorry for the delays.

@oke-aditya oke-aditya requested a review from pmeier January 24, 2022 09:47
Copy link
Contributor

@datumbox datumbox left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

LGTM, there is one more clean up we could do but it's not blocking for me. I'll leave @NicolasHug to review once more and merge if he is OK.

Copy link
Member

@NicolasHug NicolasHug left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Thanks @oke-aditya , I gave it a quick look. It looks good, I think we can try to simplify the code a bit.

@oke-aditya oke-aditya requested a review from NicolasHug January 27, 2022 17:55
@oke-aditya
Copy link
Contributor Author

I had a brief chat with @datumbox over slack.
He clarified about Stuff vs Things and why allocating one color per class is not most optimal.

  1. Consider the case of Instance segmentation. Here we need to specifically distinguish each person in the image. So say we have 4 people, we can't draw same color masks. It would be tougher to visualize.
  2. The current API is flexible enough and if one color per class is needed. Users can write this mapping logic and get it done. We would lose this flexibility once we enforce it.
  3. We can consider adding this once we have sufficient metadata (maybe in near future with metadata of models and datasets). Then it would be good and interpretable as why the colors are allocated in specific fashion (something which detectron2 does I believe)

I highly agree to the thoughts and felt that it isn't very necessary for one color per class. Although most use-cases might hold it valid, considering all the possibilities it isn't good.

cc @NicolasHug @pmeier

Apart from that let's move ahead with this 😃

Copy link
Contributor Author

@oke-aditya oke-aditya left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Well that's some great clean coding 👀 lot to learn from this diff

num_boxes = boxes.shape[0]

if labels is None:
labels = [None] * num_boxes
Copy link
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

I'm going to need @pmeier 's enlightment on the mypy issue here https://app.circleci.com/pipelines/github/pytorch/vision/14562/workflows/da348bb7-e7cb-46f5-9d6e-0ea7248d59f1/jobs/1171625

What would you suggest?

I tried

        labels: Union[List[str], List[None]] = [None] * num_boxes

But mypy complains with

torchvision/utils.py:205: error: Name "labels" already defined on line 154  [no-redef]
            labels: Union[List[str], List[None]] = [None] * num_boxes
            ^

despite the allow_redefinition = True option.

Copy link
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Very naturally:

        labels: Union[List[str], List[None]] = [None] * num_boxes  # type: ignore[no-redef]

won't work either because mypy will instead use the first (outdated) definition instead of this new one.

Copy link
Collaborator

@pmeier pmeier Feb 3, 2022

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

despite the allow_redefinition = True option.

This happens because allow_redefinition only applies to cases where the redefinition is on the same "nesting level".

What would you suggest?

If labels = [None] * ... is a valid value, I would simply change the input annotation to reflect that: Optional[List[Optional[str]]]. This also gives the user the option to exclude certain labels (labels=["label1", None, "label2"]) and should be compliant with the rest of the code.

Copy link
Member

@NicolasHug NicolasHug Feb 3, 2022

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Thanks @pmeier for the info.

I'm not sure I understand what the "nesting rule" is meant to enforce. For example this makes mypy happy and yet it's strictly equivalent to our code:

    labels: Union[List[str], List[None]] = [None] * num_boxes if labels is None else labels

The only difference is the use of the "ternary" if instead of an indented if block.

I'd prefer not allowing None values in the labels list for users, as I'm not sure there's a use-case where users would have labels for some boxes, but not all (worst cast scenario they can always pass empty strings). In fact, before this PR, passing a None value for a label would fail as draw.text doesn't support it.

So I'll just silence mypy here (twice), because this error doesn't make much sense.

@NicolasHug
Copy link
Member

Merging, thanks a lot @oke-aditya for the PR!

@oke-aditya oke-aditya deleted the add_clr branch February 3, 2022 11:31
@oke-aditya
Copy link
Contributor Author

oke-aditya commented Feb 3, 2022

Sometimes I feel a bit odd. Maintainers say thanks a lot. But really my contribution < 30%.

Thanks to you guys. Great people all around.

@NicolasHug
Copy link
Member

@oke-aditya you suggested this improvement on your own in #4528 and took the time to discuss alternatives / implementations strategies, and got to a good working version here... while doing all of this on your free time. This is very valuable to us and to the project, and definitely accounts for a lot more than 30% :)

@pmeier
Copy link
Collaborator

pmeier commented Feb 3, 2022

LoC is a very bad metric to judge a contribution. Keep up the good work!

facebook-github-bot pushed a commit that referenced this pull request Feb 11, 2022
)

Summary:
* Add random colors

* Update error message, pretty the code

* Update edge cases

* Change implementation to tuples

* Fix bugs

* Add tests

* Reuse palette

* small rename fix

* Update tests and code

* Simplify code

* ufmt

* fixed colors -> random colors in docstring

* Actually simplify further

* Silence mypy. Twice. lol.

Reviewed By: NicolasHug

Differential Revision: D34140251

fbshipit-source-id: 84685cfb4bfbd1d9d89801f2507cf52e4fff370b

Co-authored-by: Nicolas Hug <[email protected]>
@ElHouas
Copy link

ElHouas commented Oct 4, 2022

Hi @datumbox & @oke-aditya,

I am writing to ask about the colouring of bboxes, as it doesn't colour the bboxes per label. Instead, we are colouring per num_boxes instead per num_labels.
Is possible to colour the bboxes per label with the current API or I am missing something?
Thanks for your time

@datumbox
Copy link
Contributor

datumbox commented Oct 4, 2022

@ElHouas The API was chosen to give to the user maximum freedom to colour things how they want without making assumptions on our side. You can achieve what you need by something along the lines:

pallette = ['#be254a', '#dc484c', '#ef6645', '#f88c51', '#fdb365', '#fed27f', '#feeb9d', '#fffebe',
'#f0f9a7', '#d8ef9b', '#b3e0a2', '#89d0a4', '#60bba8', '#3f97b7', '#4273b3']

unique = set(labels)
labels_to_colours = dict(zip(unique, pallette[:len(unique)]))
colours = [labels_to_colours[l] for l in labels]

@ElHouas
Copy link

ElHouas commented Oct 4, 2022

@datumbox It makes sense from your side, I appreciate the quick response.
I ll try your suggestion :)

Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment
Projects
None yet
Development

Successfully merging this pull request may close these issues.

Generate colors from random color palette in draw_bounding_boxes
6 participants
