Fix GTP_U_Header binds #2010

gpotter2 · 2019-05-01T11:19:46Z

This PR:

fixes Wireshark does not recognize GTP-U header , in scenario where Inner IPs are IPV6 Address Family. #2008

codecov · 2019-05-01T11:47:35Z

Codecov Report

Merging #2010 into master will decrease coverage by 1.9%.
The diff coverage is 95.23%.

@@            Coverage Diff             @@
##           master    #2010      +/-   ##
==========================================
- Coverage   85.97%   84.06%   -1.91%
==========================================
  Files         189      188       -1
  Lines       43071    42864     -207
==========================================
- Hits        37029    36033     -996
- Misses       6042     6831     +789

Impacted Files	Coverage Δ
scapy/contrib/gtp.py	`89% <95.23%> (+0.18%)`	⬆️
scapy/contrib/cansocket_python_can.py	`37.7% <0%> (-54.1%)`	⬇️
scapy/arch/bpf/core.py	`28% <0%> (-54%)`	⬇️
scapy/contrib/cansocket_native.py	`29.57% <0%> (-50.71%)`	⬇️
scapy/arch/common.py	`54.34% <0%> (-36.96%)`	⬇️
scapy/arch/linux.py	`52.14% <0%> (-22.42%)`	⬇️
scapy/layers/dhcp6.py	`63.38% <0%> (-21.76%)`	⬇️
scapy/supersocket.py	`53.87% <0%> (-18.22%)`	⬇️
scapy/contrib/isotp.py	`72.85% <0%> (-15.47%)`	⬇️
scapy/arch/pcapdnet.py	`45.14% <0%> (-11.9%)`	⬇️
... and 26 more

asingh1984 · 2019-05-01T15:07:00Z

On "gtpbind" branch I do get errors on using scapy commands but tried same on "Master" with no errors. Please check the detailed info as below.
I'm not familiar with tools/developer environment , please bear with me if I do miss any info.

thanks !!

Tried on "gtpbind Branch" :

a) git clone https://github.com/gpotter2/scapy.git
b)I had to add following code , end of "gtp.py" file , to make it run. Not sure if its the correct way to do it,

Running gtp.py will not result in any action ( no scapy terminal)

sudo python gtp.py
sudo python gtp.py

I had to add following code , end of "gtp.py" file , to make it run

if name == "main":
from scapy.all import *
interact(mydict=globals(), mybanner="GTPv1 add-on")

c) scapy command results in error error !!
sudo python gtp.py

send(IP(src="100.100.100.1", dst="100.100.100.81")/UDP(sport=2152,dport=2152)/GTP_U_Header(TEID=9999)/IP(src="1.1.1.1", dst="2.2.2.2")/UDP(sport=1111,dport=2222),inter=0.01,count=10)

Traceback (most recent call last):
File "", line 1, in
File "/usr/local/lib/python2.7/dist-packages/scapy/base_classes.py", line 258, in call
i.init(*args, **kargs)
File "/usr/local/lib/python2.7/dist-packages/scapy/packet.py", line 158, in init
for fname, _ in fields:
ValueError: too many values to unpack

Tried on "Master Branch" :
a) git clone https://github.com/secdev/scapy.git
b) I'm able to execute scapy command with no error !!

sudo python gtp.py

send(IP(src="100.100.100.1", dst="100.100.100.81")/UDP(sport=2152,dport=2152)/GTP_U_Header(TEID=9999)/IP(src="1.1.1.1", dst="2.2.2.2")/UDP(sport=1111,dport=2222),inter=0.01,count=10)

.
Sent 1 packets.

gpotter2 · 2019-05-01T15:48:52Z

TEID is teid on master. You're probably using an old version if it's working.
The error you're seeing is unrelated and fixed on another PR (#1983)

asingh1984 · 2019-05-01T16:07:40Z

More Info In Details,

Just curious to know are the following two gtp.py files for different purpose ? It seems "secdev" one is latest/updated ?

a) https://github.com/cisco-system-traffic-generator/trex-core/blob/master/scripts/external_libs/scapy-2.3.1/python3/scapy/contrib/gtp.py

b) https://github.com/secdev/scapy/blob/master/scapy/contrib/gtp.py

git clone https://github.com/secdev/scapy.git

a) Running "sudo python gtp.py" does not result in anything , is this correct way ?

asingh@Linux-Client:$ git clone https://github.com/secdev/scapy.git
Cloning into 'scapy'...
Checking connectivity... done.
asingh@Linux-Client:/scapy/scapy/contrib$ sudo python gtp.py
asingh@Linux-Client:/scapy/scapy/contrib$
asingh@Linux-Client:/scapy/scapy/contrib$
asingh@Linux-Client:~/scapy/scapy/contrib$ sudo python gtp.py

b) had to add following code to make it run, not sure of its correct way

if name == "main":
from scapy.all import *
interact(mydict=globals(), mybanner="GTPv1 add-on")

asingh@Linux-Client:/master/scapy/scapy/contrib$
asingh@Linux-Client:/master/scapy/scapy/contrib$ sudo python gtp.py
[sudo] password for asingh:
WARNING: IPython not available. Using standard Python shell instead.
AutoCompletion, History are disabled.

                 aSPY//YASa
         apyyyyCY//////////YCa       |
        sY//////YSpcs  scpCY//Pp     | Welcome to Scapy

c) Error on running scapy commands,

send(IP(src="100.100.100.1", dst="100.100.100.81")/UDP(sport=2152,dport=2152)/GTP_U_Header(TEID=9999)/IP(src="1.1.1.1", dst="2.2.2.2")/UDP(sport=1111,dport=2222),inter=0.01,count=10)

Traceback (most recent call last):
File "", line 1, in
File "/usr/local/lib/python2.7/dist-packages/scapy/base_classes.py", line 258, in call
i.init(*args, **kargs)
File "/usr/local/lib/python2.7/dist-packages/scapy/packet.py", line 158, in init
for fname, _ in fields:
ValueError: too many values to unpack

git clone https://github.com/gtpbind//scapy.git

a) Running "sudo python gtp.py" does not result in anything , is this correct way ?

asingh@Linux-Client:$ git clone https://github.com/gtpbind//scapy.git
Cloning into 'scapy'...
Checking connectivity... done.
asingh@Linux-Client:/scapy/scapy/contrib$ sudo python gtp.py

asingh@Linux-Client:~/scapy/scapy/contrib$ sudo python gtp.py

b) had to add following code to make it run, not sure of its correct way

if name == "main":
from scapy.all import *
interact(mydict=globals(), mybanner="GTPv1 add-on")

asingh@Linux-Client:~/gtpbind/scapy/scapy/contrib$ sudo python gtp.py
[sudo] password for asingh:
WARNING: IPython not available. Using standard Python shell instead.
AutoCompletion, History are disabled.

                 aSPY//YASa
         apyyyyCY//////////YCa       |
        sY//////YSpcs  scpCY//Pp     | Welcome to Scapy

GTPv1 add-on

c) Error on running scapy commands,

send(IP(src="100.100.100.1", dst="100.100.100.81")/UDP(sport=2152,dport=2152)/GTP_U_Header(TEID=9999)/IP(src="1.1.1.1", dst="2.2.2.2")/UDP(sport=1111,dport=2222),inter=0.01,count=10)

Traceback (most recent call last):
File "", line 1, in
File "/usr/local/lib/python2.7/dist-packages/scapy/base_classes.py", line 258, in call
i.init(*args, **kargs)
File "/usr/local/lib/python2.7/dist-packages/scapy/packet.py", line 158, in init
for fname, _ in fields:
ValueError: too many values to unpack

4)git clone https://github.com/cisco-system-traffic-generator/trex-core.git

a)Running "sudo python gtp.py" results in scapy session

asingh@Linux-Client:~/trex-core/trex-core/scripts/external_libs/scapy-2.3.1/python3/scapy/contrib$ sudo python gtp.py
[sudo] password for asingh:

WARNING: IPython not available. Using standard Python shell instead.
AutoCompletion, History are disabled.

                 aSPY//YASa
         apyyyyCY//////////YCa       |
        sY//////YSpcs  scpCY//Pp     | Welcome to Scapy

GTPv1 add-on

send(IP(src="100.100.100.1", dst="100.100.100.81")/UDP(sport=2152,dport=2152)/GTP_U_Header(TEID=9999)/IP(src="1.1.1.1", dst="2.2.2.2")/UDP(sport=1111,dport=2222),inter=0.01,count=10)

..........
Sent 10 packets.

gpotter2 · 2019-05-01T16:10:37Z

I had no idea of the existence of https://github.com/cisco-system-traffic-generator/trex-core/, but it looks like they copied the source of Scapy 2.3.1 (which is super outdated).

Again, you need to rename TEID to teid

asingh1984 · 2019-05-01T16:20:37Z

Great ! thanks for that info.....after changing "TEID" to "teid" my scapy commands are working fine , but I still see the same error of inner packets are not recognize as GTPU-U packets ( wireshark still shows data.... ) .I'm using https://github.com/gpotter2/scapy/blob/gtpbind/scapy/contrib/gtp.py.Any suggestions ? Command:

Outer IPv4 and Inner IPv6 --> Wireshark does not !!! recognize it as GTP packets. (Wireshark just treats it as data.. )

send(IP(src="100.100.100.1", dst="100.100.100.81")/UDP(sport=2152,dport=2152)/GTP_U_Header(teid=9999)/IPv6(src="2002::101:101:101:1", dst="2002::102:102:102:1")/UDP(sport=1111,dport=2222),inter=0.01,count=100)

asingh1984 · 2019-05-01T17:08:50Z

Also ,

I had to add following code , end of "gtp.py" file , to make it run for scapy commands

if name == "main":
from scapy.all import *
interact(mydict=globals(), mybanner="GTPv1 add-on")

Run the gtp file

sudo python gtp.py

Is this correct way ? or am i missing something ?

asingh1984 · 2019-05-03T17:31:46Z

Hi Gabriel, any luck with this bug? thanks !

gpotter2 · 2019-05-03T18:08:59Z

It works fine for me

>>> tdecode(IP(src="100.100.100.1", dst="100.100.100.81")/UDP(sport=2152,dport=2152)/GTP_U_Header(teid=9999)/IPv6(src="2002::101:101:101:1", dst="2002::102:102:102:1")/UDP(sport=1111,dport=2222))
Frame 1: 84 bytes on wire (672 bits), 84 bytes captured (672 bits)
    Encapsulation type: Raw IPv4 (129)
    Arrival Time: May  3, 2019 20:07:37.194523000 CEST
    [Time shift for this packet: 0.000000000 seconds]
    Epoch Time: 1556906857.194523000 seconds
    [Time delta from previous captured frame: 0.000000000 seconds]
    [Time delta from previous displayed frame: 0.000000000 seconds]
    [Time since reference or first frame: 0.000000000 seconds]
    Frame Number: 1
    Frame Length: 84 bytes (672 bits)
    Capture Length: 84 bytes (672 bits)
    [Frame is marked: False]
    [Frame is ignored: False]
    [Protocols in frame: ip:udp:gtp:ipv6:udp]
Internet Protocol Version 4, Src: 100.100.100.1, Dst: 100.100.100.81
    0100 .... = Version: 4
    .... 0101 = Header Length: 20 bytes (5)
    Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT)
        0000 00.. = Differentiated Services Codepoint: Default (0)
        .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0)
    Total Length: 84
    Identification: 0x0001 (1)
    Flags: 0x0000
        0... .... .... .... = Reserved bit: Not set
        .0.. .... .... .... = Don't fragment: Not set
        ..0. .... .... .... = More fragments: Not set
        ...0 0000 0000 0000 = Fragment offset: 0
    Time to live: 64
    Protocol: UDP (17)
    Header checksum: 0xe97d [validation disabled]
    [Header checksum status: Unverified]
    Source: 100.100.100.1
    Destination: 100.100.100.81
User Datagram Protocol, Src Port: 2152, Dst Port: 2152
    Source Port: 2152
    Destination Port: 2152
    Length: 64
    Checksum: 0x9415 [unverified]
    [Checksum Status: Unverified]
    [Stream index: 0]
GPRS Tunneling Protocol
    Flags: 0x30
        001. .... = Version: GTP release 99 version (1)
        ...1 .... = Protocol type: GTP (1)
        .... 0... = Reserved: 0
        .... .0.. = Is Next Extension Header present?: No
        .... ..0. = Is Sequence Number present?: No
        .... ...0 = Is N-PDU number present?: No
    Message Type: T-PDU (0xff)
    Length: 48
    TEID: 0x0000270f (9999)
    T-PDU Data: 600000000008114020020000000000000101010101010001...
Internet Protocol Version 6, Src: 2002::101:101:101:1, Dst: 2002::102:102:102:1
    0110 .... = Version: 6
    .... 0000 0000 .... .... .... .... .... = Traffic Class: 0x00 (DSCP: CS0, ECN: Not-ECT)
        .... 0000 00.. .... .... .... .... .... = Differentiated Services Codepoint: Default (0)
        .... .... ..00 .... .... .... .... .... = Explicit Congestion Notification: Not ECN-Capable Transport (0)
    .... .... .... 0000 0000 0000 0000 0000 = Flow Label: 0x00000
    Payload Length: 8
    Next Header: UDP (17)
    Hop Limit: 64
    Source: 2002::101:101:101:1
    Destination: 2002::102:102:102:1
    [Source 6to4 Gateway IPv4: 0.0.0.0]
    [Source 6to4 SLA ID: 0]
    [Destination 6to4 Gateway IPv4: 0.0.0.0]
    [Destination 6to4 SLA ID: 0]
User Datagram Protocol, Src Port: 1111, Dst Port: 2222
    Source Port: 1111
    Destination Port: 2222
    Length: 8
    Checksum: 0xacca [unverified]
    [Checksum Status: Unverified]
    [Stream index: 1]

asingh1984 · 2019-05-03T18:20:26Z

thanks for sharing that info , let me give a try again !

Also , just to make sure

I had to add following code , end of "gtp.py" file , to make it run for scapy commands
if name == "main":
from scapy.all import *
interact(mydict=globals(), mybanner="GTPv1 add-on")

Run the gtp file
sudo python gtp.py

Is this correct way ? or am i missing something ?

If you could please share the steps , that would be really helpful to verify this bug. thanks !

gpotter2 · 2019-05-03T18:26:56Z

You're making gtp.py a standalone module.

You can do that.

It's equivalent to starting Scapy and load_contrib("gtp")

asingh1984 · 2019-05-03T19:38:55Z

Thanks.
Sorry I am not much familiar with these environment ,

I'm starting fresh on new ubuntu setup ,

What are the steps I need to perform to run scapy command , after cloning following link,

git clone https://github.com/gpotter2/scapy.git ?

thanks !

gpotter2 · 2019-05-03T20:29:51Z

https://scapy.readthedocs.io/en/latest/installation.html#current-development-version

asingh1984 · 2019-05-03T21:23:49Z

Question:

Looks like scapy has no idea about "GTP_U_Header" , do i need to run/install "gtp.py" ? missing any steps described below ?

STEPS:

Step1: git clone https://github.com/gpotter2/scapy.git
Step2: cd scapy
Step3: sudo python setup.py install
Step4: sudo scapy

Run Command:
send(IP(src="100.100.100.1", dst="100.100.100.81")/UDP(sport=2152,dport=2152)/GTP_U_Header(TEID=9999)/IPv6(src="2002::101:101:101:1", dst="2002::102:102:102:1")/UDP(sport=1111,dport=2222),inter=0.01,count=100)

Traceback (most recent call last):
File "", line 1, in
NameError: name 'GTP_U_Header' is not defined

gpotter2 · 2019-05-03T21:27:32Z

You forgot load_contrib("gtp")

asingh1984 · 2019-05-03T21:47:08Z

Hi Gabriel.

thank you ! so much , for helping on this bug , really appreciate your efforts.

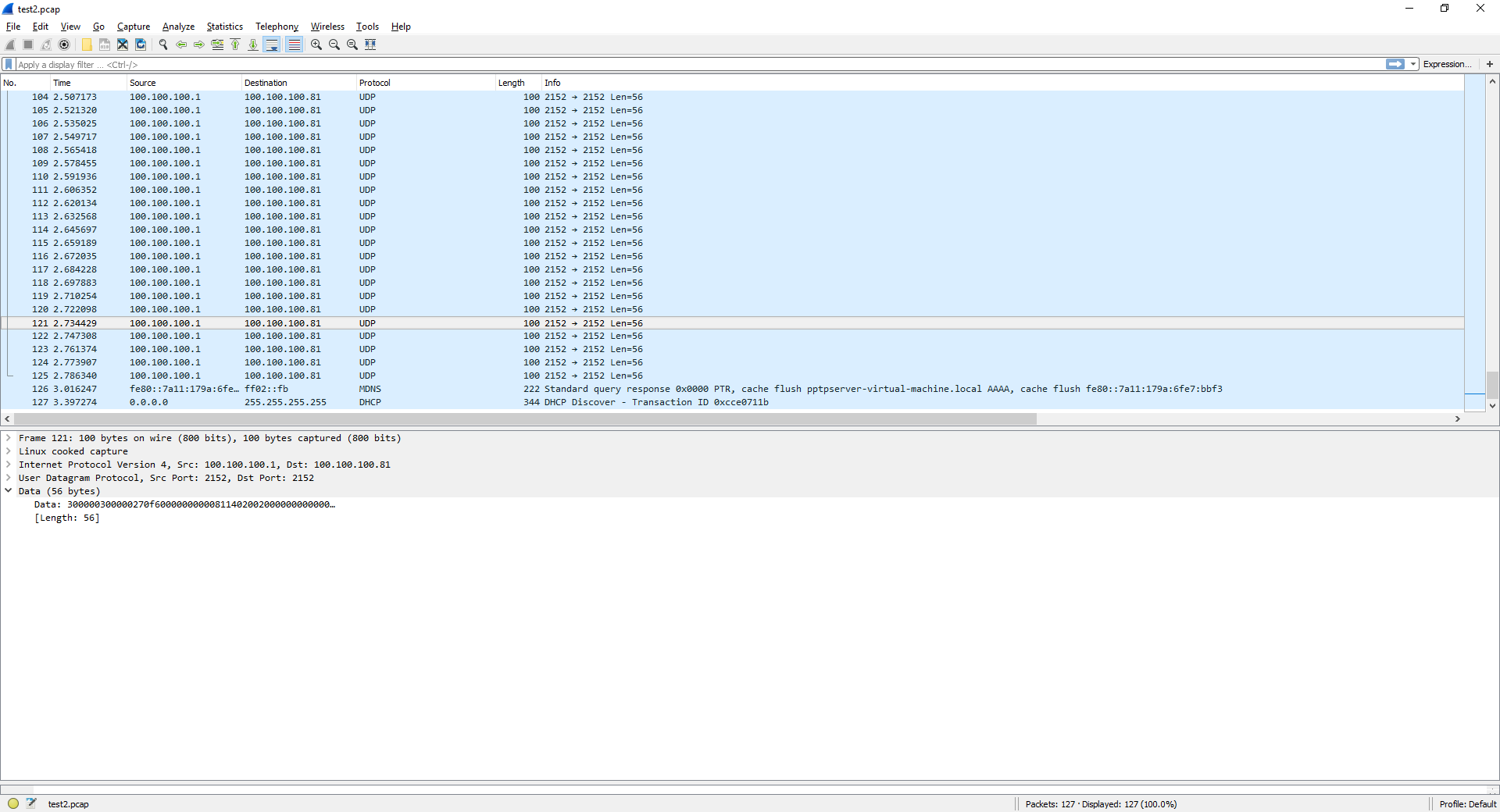

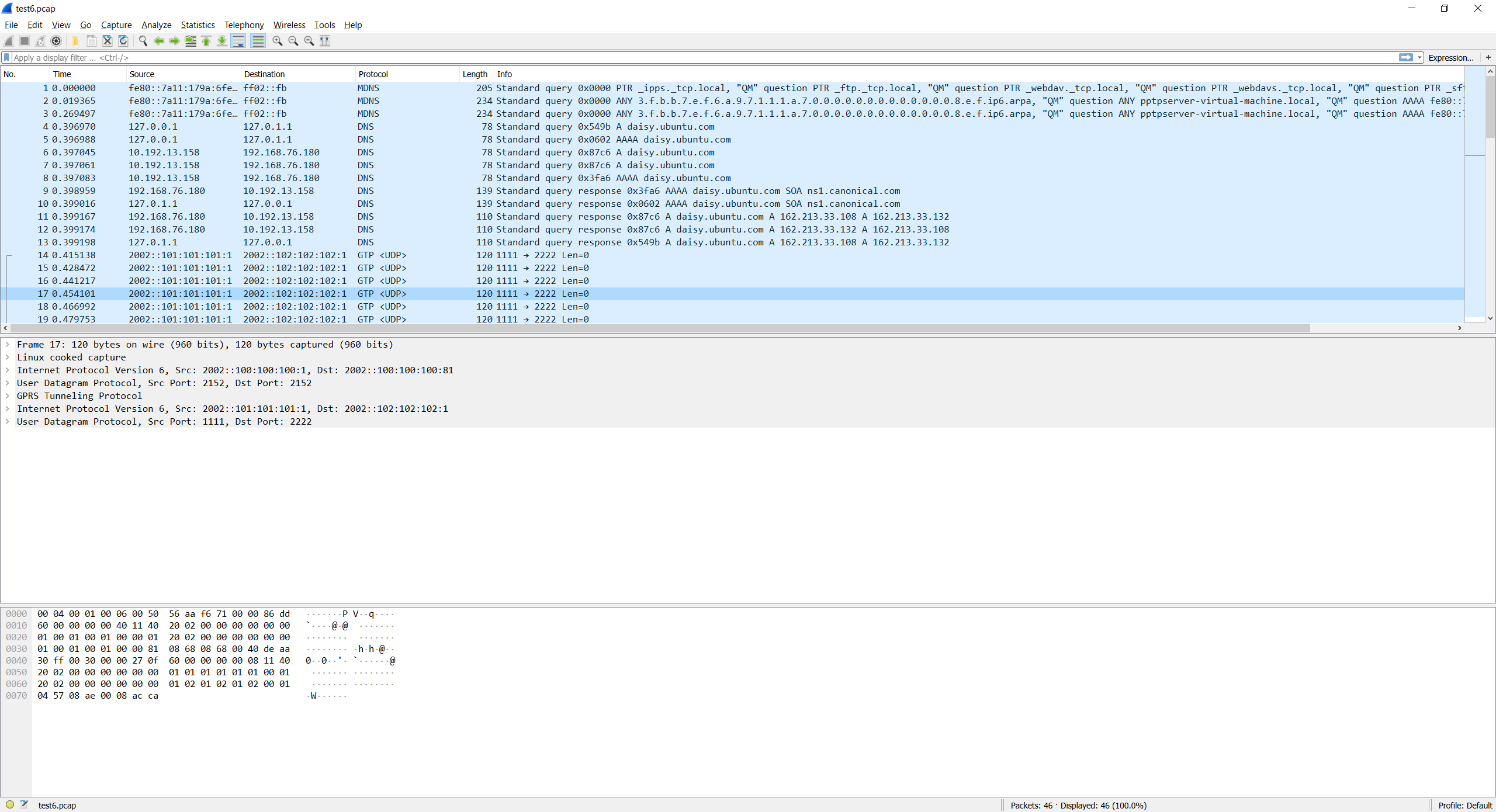

I'm able to see GTP-U Inner IPv6 scenarios..in wireshark.

Here are the steps ,

Step1: git clone https://github.com/secdev/scapy.git
Step2: cd scapy
Step3: sudo python setup.py install
Step4: sudo scapy
Step5: load_contrib("gtp")

Run Command:
send(IP(src="100.100.100.1", dst="100.100.100.81")/UDP(sport=2152,dport=2152)/GTP_U_Header(teid=9999)/IPv6(src="2002::101:101:101:1", dst="2002::102:102:102:1")/UDP(sport=1111,dport=2222),inter=0.01,count=100)

gpotter2 added the bug label May 1, 2019

Fix GTP_U_Header binds

b714108

gpotter2 force-pushed the gtpbind branch from f29079a to b714108 Compare May 1, 2019 11:25

gpotter2 mentioned this pull request May 1, 2019

Wireshark does not recognize GTP-U header , in scenario where Inner IPs are IPV6 Address Family. #2008

Closed

gpotter2 merged commit 4addf52 into secdev:master May 3, 2019

gpotter2 deleted the gtpbind branch May 3, 2019 21:27

Uh oh!

Fix GTP_U_Header binds #2010

Fix GTP_U_Header binds #2010

Uh oh!

Conversation

gpotter2 commented May 1, 2019

Uh oh!

codecov bot commented May 1, 2019 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Codecov Report

Uh oh!

asingh1984 commented May 1, 2019

Uh oh!

gpotter2 commented May 1, 2019 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

asingh1984 commented May 1, 2019 • edited by gpotter2 Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

gpotter2 commented May 1, 2019 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

asingh1984 commented May 1, 2019

Uh oh!

asingh1984 commented May 1, 2019 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

asingh1984 commented May 3, 2019

Uh oh!

gpotter2 commented May 3, 2019 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

asingh1984 commented May 3, 2019 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

gpotter2 commented May 3, 2019

Uh oh!

asingh1984 commented May 3, 2019

Uh oh!

gpotter2 commented May 3, 2019

Uh oh!

asingh1984 commented May 3, 2019

Uh oh!

gpotter2 commented May 3, 2019

Uh oh!

asingh1984 commented May 3, 2019

Uh oh!

Uh oh!

codecov bot commented May 1, 2019 •

edited

Loading

gpotter2 commented May 1, 2019 •

edited

Loading

asingh1984 commented May 1, 2019 •

edited by gpotter2

Loading

gpotter2 commented May 1, 2019 •

edited

Loading

asingh1984 commented May 1, 2019 •

edited

Loading

gpotter2 commented May 3, 2019 •

edited

Loading

asingh1984 commented May 3, 2019 •

edited

Loading
