Regression with width aesthetic in documentation

[gfiumara]

A warning is omitted when using the width aesthetic, but still seems to produce identical plots.

Example from ggplot2 documentation for geom_tile:
2.1 Documentation, Dev Documentation

library(ggplot2)
df <- data.frame(
  x = rep(c(2, 5, 7, 9, 12), 2),
  y = rep(c(1, 2), each = 5),
  z = factor(rep(1:5, each = 2)),
  w = rep(diff(c(0, 4, 6, 8, 10, 14)), 2)
)
ggplot(df, aes(x, y)) +
  geom_tile(aes(fill = z, width = w), colour = "grey50")

ggplot2 2.2:

Warning: Ignoring unknown aesthetics: width

ggplot2 2.1:

No output

[hadley]

And

library(tidyverse)

df <- tibble(
  x = c("F1","F2","Overall"),
  y = c(0.4,0.5,0.42),
  w = c(1,1,2) * 0.5
)

ggplot(df, aes(x, y)) +
  geom_col(aes(width=w))

[hadley]

This is trickier than I thought. I think the key is that width and height are alternative parameterisations for these geoms — they're not necessary, but the setup_data() method will use them if available. It seems like adding a new alternative_aes should fix this, but when I plumb it up, setting the width as an aesthetic no longer works.

When I come back to this, I have work in local "alternative-aes" branch

[has2k1]

Isn't that what the "slightly hacky" extra_params is for? It is not properly checked against for the case of aesthetic mappings.

grep -r extra_params

[hadley]

@has2k1 that's subtly different, I think, and I suspect wiring it up with parameters will have the same problems.

[yutannihilation]

This issue seems fixed already. Can we close this?

library(ggplot2)
df <- data.frame(
  x = rep(c(2, 5, 7, 9, 12), 2),
  y = rep(c(1, 2), each = 5),
  z = factor(rep(1:5, each = 2)),
  w = rep(diff(c(0, 4, 6, 8, 10, 14)), 2)
)

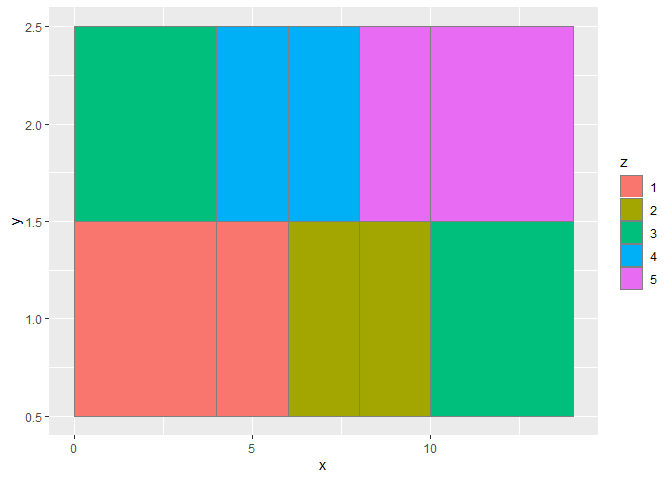

ggplot(df, aes(x, y)) +
  geom_tile(aes(fill = z, width = w), colour = "grey50")

^{Created on 2019-02-14 by the reprex package (v0.2.1)}

[yutannihilation]

Fixed by this commit: a11f786
