geom_area with negative values

[ptoche]

I recently reported changes in the order in which geom_area stacks layers. Adding the position = position_stack(reverse = TRUE) option seemed to be enough to revert to the "old" (undated) behaviour. I am now seeing some unexpected behaviour. Immediately below is my plot of 2 years ago, followed by a reprex of the plot now:

As I was preparing this issue, I noticed a possibly related issue posted 4 hours ago.

Here is the desired plot of 2 years ago:

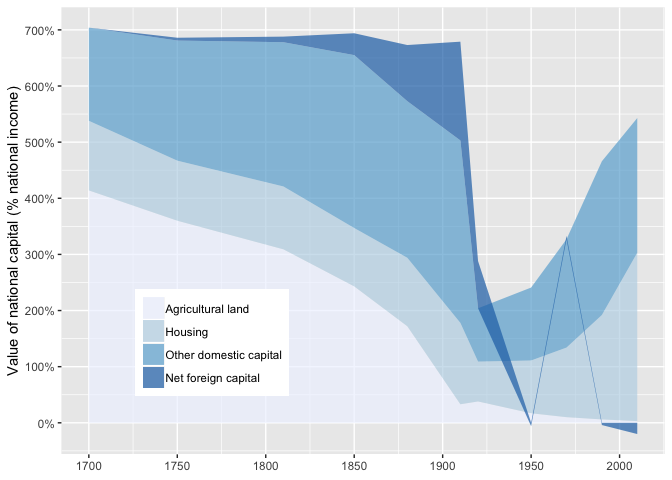

Below is the reprex of today's plot:

library(reprex)

# Data
df <- structure(list(Year = c(1700, 1750, 1810, 1850, 1880, 1910, 1920,
1950, 1970, 1990, 2010, 1700, 1750, 1810, 1850, 1880, 1910, 1920,
1950, 1970, 1990, 2010, 1700, 1750, 1810, 1850, 1880, 1910, 1920,
1950, 1970, 1990, 2010, 1700, 1750, 1810, 1850, 1880, 1910, 1920,
1950, 1970, 1990, 2010), variable = structure(c(2L, 2L, 2L, 2L,
2L, 2L, 2L, 2L, 2L, 2L, 2L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L,
3L, 3L, 4L, 4L, 4L, 4L, 4L, 4L, 4L, 4L, 4L, 4L, 4L, 5L, 5L, 5L,
5L, 5L, 5L, 5L, 5L, 5L, 5L, 5L), .Label = c("National capital (private + public)",
"Agricultural land", "Housing", "Other domestic capital", "Net foreign capital",
"Public capital", "Public assets", "Public debt", "Private capital"
), class = "factor"), value = c(4.14, 3.6, 3.09, 2.43, 1.72,
0.33, 0.38, 0.17, 0.1, 0.06, 0.03, 1.24, 1.07, 1.12, 1.04, 1.22,
1.45, 0.71, 0.94, 1.24, 1.86, 3, 1.66, 2.14, 2.57, 3.08, 2.79,
3.25, 0.95, 1.3, 1.93, 2.74, 2.4, 0, 0.05, 0.1, 0.39, 1, 1.76,
0.84, -0.06, 0.06, -0.04, -0.2)), row.names = c(NA, -44L), class = "data.frame")

# Packages
library(ggplot2)
library(scales)
library("RColorBrewer")

# Plot with geom_area
ggplot(data = df, aes(x = Year, y = value, group = variable, fill = variable)) + geom_area(position = position_stack(reverse = TRUE), alpha = 0.7, show.legend = TRUE) + ylab("Value of national capital (% national income)") + xlab(NULL) + scale_x_continuous(breaks = seq(1700, 2020, by = 50)) + scale_y_continuous(labels = percent, breaks = seq(0, 8, by = 1)) + scale_fill_brewer(palette = "Blues") + theme(legend.position = c(0.25, 0.25), legend.title = element_blank()) + guides(shape = guide_legend(ncol = 1))

reprex()
#> Rendering reprex...
#> Rendered reprex is on the clipboard.

Created on 2018-08-04 by the reprex package (v0.2.0).

[clauswilke]

I don't see how this differs from #2802. Let's keep the conversation in one issue.

[lock]

This old issue has been automatically locked. If you believe you have found a related problem, please file a new issue (with reprex) and link to this issue. https://reprex.tidyverse.org/
