Point symbols do not appear in the legend [geom_sf]

[kadyb]

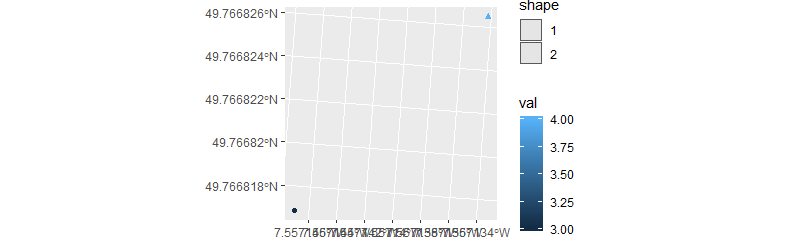

I chose point symbols, they appeared on the map, but didn't appear in the legend.

library("sf")
library("ggplot2")
df = data.frame(x = 1:2, y = 1:2, val = 3:4, shape = factor(1:2))
df = st_as_sf(df, coords = c("x", "y"), crs = 27700)

ggplot(df) +
   geom_sf(aes(color = val, shape = shape))

[clauswilke]

Apparently the legend type is hardcoded and is not auto-detected:

ggplot2/R/geom-sf.R

Line 185 in 9870890

legend = if (is.character(show.legend)) show.legend else "polygon",

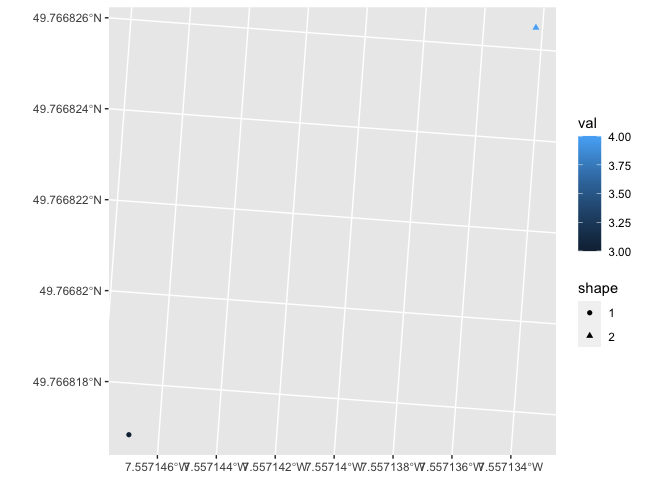

Manually setting it to "point" works, but if we could add auto-detection that would be great.

library("sf")
#> Linking to GEOS 3.7.2, GDAL 2.4.2, PROJ 5.2.0
library("ggplot2")
df = data.frame(x = 1:2, y = 1:2, val = 3:4, shape = factor(1:2))
df = st_as_sf(df, coords = c("x", "y"), crs = 27700)

ggplot(df) +
  geom_sf(aes(color = val, shape = shape), show.legend = "point")

^{Created on 2019-10-16 by the reprex package (v0.3.0)}

[clauswilke]

With current ggplot2 master:

library("sf")
#> Linking to GEOS 3.7.2, GDAL 2.4.2, PROJ 5.2.0
library("ggplot2")
df = data.frame(x = 1:2, y = 1:2, val = 3:4, shape = factor(1:2))
df = st_as_sf(df, coords = c("x", "y"), crs = 27700)

ggplot(df) +
  geom_sf(aes(color = val, shape = shape))

^{Created on 2019-12-06 by the reprex package (v0.3.0)}
