Filled contours don't play well with faceting

[clauswilke]

This is technically a bug report against my PR #3864, but the bug isn't caused by that PR, it's just revealed by it. The same bug exists with geom_contour_filled(), just requires more code to generate a reprex.

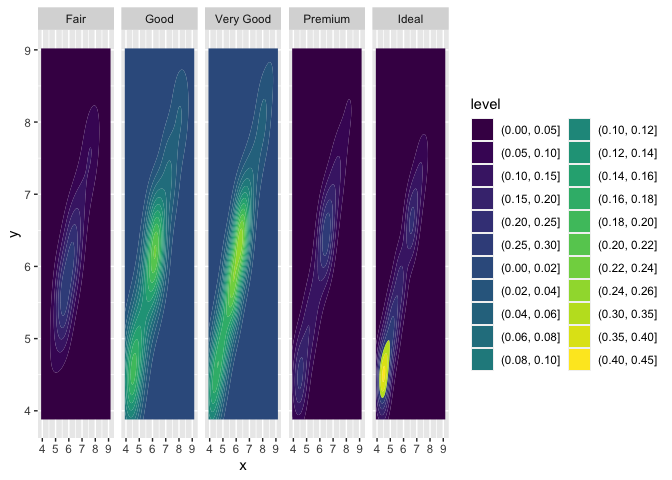

I have noticed that when I draw filled density contours across facets, the color levels in the legend get jumbled. (Carefully look at the levels in the legend, and you'll see they're not even in order.)

library(ggplot2)

set.seed(4393)
dsmall <- diamonds[sample(nrow(diamonds), 1000), ]

ggplot(dsmall, aes(x, y)) +
  geom_density_2d_filled() +
  facet_grid(. ~ cut)

What happens is that the breaks are calculated separately for each facet, and then they don't match across facets. It's possible to work around this by manually specifying breaks, but I think the default settings should work with facets.

Fundamentally, the problem is that the level variable for contour bands is an ordered factor specifying the bin boundaries:

ggplot2/R/stat-contour.r

Line 111 in db58364

path_df$level <- ordered(path_df$level, levels = names(isobands))

By contrast, the level variable for contour lines is a numeric:

ggplot2/R/stat-contour.r

Line 86 in db58364

path_df$level <- as.numeric(path_df$level)

I think instead we should return a numeric value for level in all cases and by default map that to fill for filled contours. We can still return the ordered factor as well as an option, under a different name. The numeric value I would use for level would be the mid-point between the lower and the upper level boundary. This is consistent with other binning approaches, e.g. the placement of bars in histograms.

The result would be something like the following (but without the aes(fill = ...) statement needed):

ggplot(dsmall, aes(x, y)) +
  geom_density_2d_filled(aes(fill = after_stat(level_high))) +
  facet_grid(. ~ cut) +
  scale_fill_viridis_c()

This will be consistent with how contour lines work already:

ggplot(dsmall, aes(x, y)) +

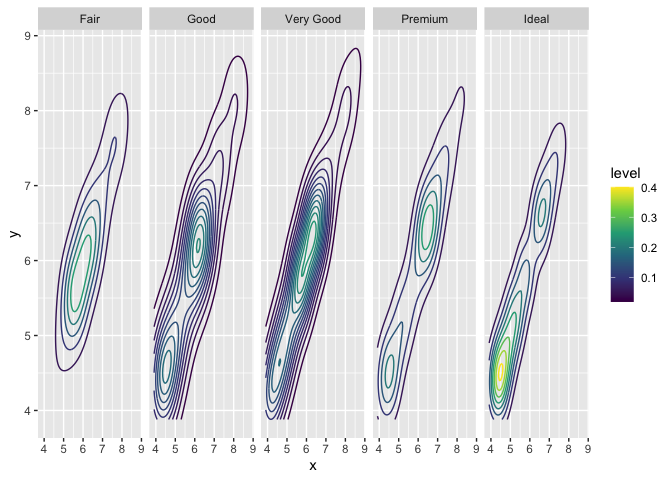

  geom_density_2d(aes(color = after_stat(level))) +
  facet_grid(. ~ cut) +
  scale_color_viridis_c()

If we agree on this approach I'll incorporate it into #3864.

[thomasp85]

I think it absolutely makes sense to return an ordered factor (I believe we discussed this before).

Can this not be solved by modifying the compute_layer function to correctly assemble the level columns?

[thomasp85]

I don't think your fix in fab9732 correctly addresses the problem (ignoring the discussion about ordered factors vs numerics)

The root problem is that the breaks are calculated per-group, rather than for the full layer. I think this is fundamentally wrong, as you expect the contouring to be comparable between panels/groups.

If you precalculate the breaks in setup_params or compute_layer I believe all these issues will vanish without needing to move away from ordered factors

[clauswilke]

The root problem is that the breaks are calculated per-group, rather than for the full layer. I think this is fundamentally wrong, as you expect the contouring to be comparable between panels/groups.

Yes, correct, I'm muddling two things together. This is a case where a lot of thinking on my part led to the same outcome as no thinking at all would have. Essentially, I have convinced myself that (i) returning an ordered factor by default is not the right solution and (ii) getting the right bins across facets is fundamentally not possible, and thus I went with my approach.

The argument for (i) is that I got really annoyed when going back and forth between plots like the following:

library(ggplot2)
d <- ggplot(faithful, aes(x = eruptions, y = waiting)) +
  xlim(0.5, 6) +
  ylim(40, 110)

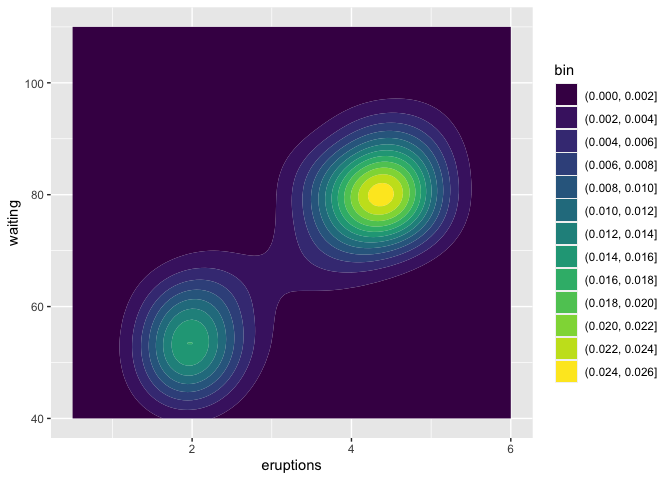

d + geom_density_2d_filled()  # assuming default behavior you suggest

# normalized to maximum intensity

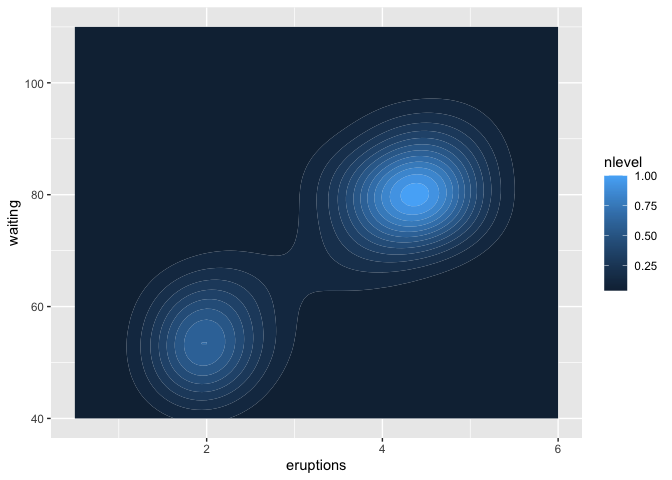

d + geom_density_2d_filled(aes(fill = after_stat(nlevel)))

# normalized to sample size

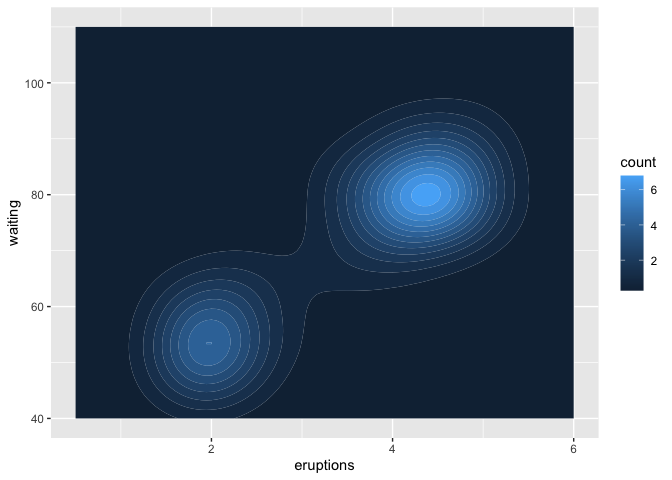

d + geom_density_2d_filled(aes(fill = after_stat(count)))

^{Created on 2020-03-10 by the reprex package (v0.3.0)}

The three plots are conceptually similar but look totally different, and one uses a discrete scale whereas the others use a continuous scale. This is very confusing for the enduser.

Now point (ii): Why not return ordered factors in all these cases? Because it doesn't work, in particular under faceting. We need different sets of bins for level vs nlevel vs count. A proper solution would have to know which variable you map and then calculate the bins based on that. This may be possible somehow but it's way beyond the scope of this PR.

I'm also concerned about the bugs that will come in complaining that count doesn't return an ordered factor when level does.

So, after all this thinking, I decided a lot of problems would go away when level is numeric, and then the other problem (consistent bins across facets for level) seemed less urgent.

[clauswilke]

Just saw your PR #3883. I have to run now and will look carefully later, but I agree this should also be done. It's separate from the numeric vs. factor discussion, as explained above.

[thomasp85]

Let’s continue discussions in #3883. I’m convinced ordered factors is the correct way. Moving to numeric will loose information and remove the possibility of using binned guides which is a very bad move
