munched_lines warning from geom_area()

[kevinwolz]

I am receiving this warning when plotting geom_area() with polar coordinates. A few other have reproduced the warning on other systems.

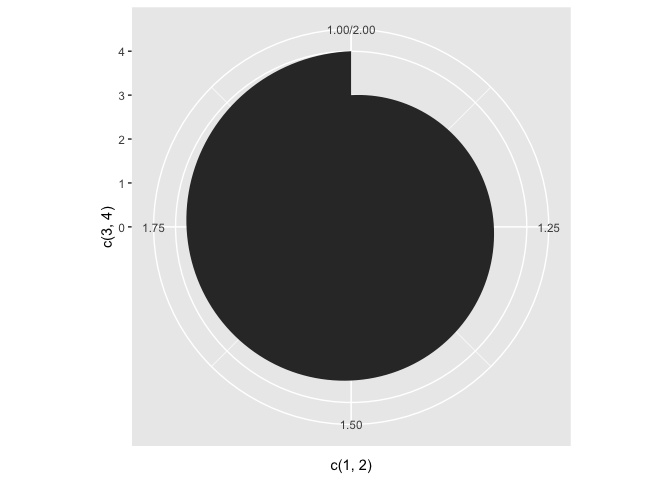

library(ggplot2)

ggplot() +
  geom_area(aes(x = c(1, 2),
                y = c(3, 4))) +
  coord_polar()
#> Warning in munched_lines$id + rep(c(0, NA), each = length(ids)): longer object
#> length is not a multiple of shorter object length

It looks like the line of code that the warning refers to is within geom_ribbon(). See it here at line #160.

This seems outline related, because the warning doesn't occur when outline.type = "full". Though, since I haven't set a color, I'm not sure if outline calculations are even happening.

ggplot() +
  geom_area(aes(x = c(1, 2),
                y = c(3, 4)),
            outline.type = "full") +
  coord_polar()

^{Created on 2020-05-23 by the reprex package (v0.3.0)}

Session info

devtools::session_info()
#> ─ Session info ───────────────────────────────────────────────────────────────
#>  setting  value
#>  version  R version 4.0.0 (2020-04-24)
#>  os       macOS Mojave 10.14.6
#>  system   x86_64, darwin17.0
#>  ui       X11
#>  language (EN)
#>  collate  en_US.UTF-8
#>  ctype    en_US.UTF-8
#>  tz       America/Chicago
#>  date     2020-05-23
#>
#> ─ Packages ───────────────────────────────────────────────────────────────────
#>  package     * version date       lib source
#>  assertthat    0.2.1   2019-03-21 [1] CRAN (R 4.0.0)
#>  backports     1.1.7   2020-05-13 [1] CRAN (R 4.0.0)
#>  callr         3.4.3   2020-03-28 [1] CRAN (R 4.0.0)
#>  cli           2.0.2   2020-02-28 [1] CRAN (R 4.0.0)
#>  colorspace    1.4-1   2019-03-18 [1] CRAN (R 4.0.0)
#>  crayon        1.3.4   2017-09-16 [1] CRAN (R 4.0.0)
#>  curl          4.3     2019-12-02 [1] CRAN (R 4.0.0)
#>  desc          1.2.0   2018-05-01 [1] CRAN (R 4.0.0)
#>  devtools      2.3.0   2020-04-10 [1] CRAN (R 4.0.0)
#>  digest        0.6.25  2020-02-23 [1] CRAN (R 4.0.0)
#>  dplyr         0.8.5   2020-03-07 [1] CRAN (R 4.0.0)
#>  ellipsis      0.3.1   2020-05-15 [1] CRAN (R 4.0.0)
#>  evaluate      0.14    2019-05-28 [1] CRAN (R 4.0.0)
#>  fansi         0.4.1   2020-01-08 [1] CRAN (R 4.0.0)
#>  farver        2.0.3   2020-01-16 [1] CRAN (R 4.0.0)
#>  fs            1.4.1   2020-04-04 [1] CRAN (R 4.0.0)
#>  ggplot2     * 3.3.0   2020-03-05 [1] CRAN (R 4.0.0)
#>  glue          1.4.1   2020-05-13 [1] CRAN (R 4.0.0)
#>  gtable        0.3.0   2019-03-25 [1] CRAN (R 4.0.0)
#>  highr         0.8     2019-03-20 [1] CRAN (R 4.0.0)
#>  htmltools     0.4.0   2019-10-04 [1] CRAN (R 4.0.0)
#>  httr          1.4.1   2019-08-05 [1] CRAN (R 4.0.0)
#>  knitr         1.28    2020-02-06 [1] CRAN (R 4.0.0)
#>  labeling      0.3     2014-08-23 [1] CRAN (R 4.0.0)
#>  lifecycle     0.2.0   2020-03-06 [1] CRAN (R 4.0.0)
#>  magrittr      1.5     2014-11-22 [1] CRAN (R 4.0.0)
#>  memoise       1.1.0   2017-04-21 [1] CRAN (R 4.0.0)
#>  mime          0.9     2020-02-04 [1] CRAN (R 4.0.0)
#>  munsell       0.5.0   2018-06-12 [1] CRAN (R 4.0.0)
#>  pillar        1.4.4   2020-05-05 [1] CRAN (R 4.0.0)
#>  pkgbuild      1.0.8   2020-05-07 [1] CRAN (R 4.0.0)
#>  pkgconfig     2.0.3   2019-09-22 [1] CRAN (R 4.0.0)
#>  pkgload       1.0.2   2018-10-29 [1] CRAN (R 4.0.0)
#>  prettyunits   1.1.1   2020-01-24 [1] CRAN (R 4.0.0)
#>  processx      3.4.2   2020-02-09 [1] CRAN (R 4.0.0)
#>  ps            1.3.3   2020-05-08 [1] CRAN (R 4.0.0)
#>  purrr         0.3.4   2020-04-17 [1] CRAN (R 4.0.0)
#>  R6            2.4.1   2019-11-12 [1] CRAN (R 4.0.0)
#>  Rcpp          1.0.4.6 2020-04-09 [1] CRAN (R 4.0.0)
#>  remotes       2.1.1   2020-02-15 [1] CRAN (R 4.0.0)
#>  rlang         0.4.6   2020-05-02 [1] CRAN (R 4.0.0)
#>  rmarkdown     2.1     2020-01-20 [1] CRAN (R 4.0.0)
#>  rprojroot     1.3-2   2018-01-03 [1] CRAN (R 4.0.0)
#>  scales        1.1.1   2020-05-11 [1] CRAN (R 4.0.0)
#>  sessioninfo   1.1.1   2018-11-05 [1] CRAN (R 4.0.0)
#>  stringi       1.4.6   2020-02-17 [1] CRAN (R 4.0.0)
#>  stringr       1.4.0   2019-02-10 [1] CRAN (R 4.0.0)
#>  testthat      2.3.2   2020-03-02 [1] CRAN (R 4.0.0)
#>  tibble        3.0.1   2020-04-20 [1] CRAN (R 4.0.0)
#>  tidyselect    1.0.0   2020-01-27 [1] CRAN (R 4.0.0)
#>  usethis       1.6.1   2020-04-29 [1] CRAN (R 4.0.0)
#>  vctrs         0.3.0   2020-05-11 [1] CRAN (R 4.0.0)
#>  withr         2.2.0   2020-04-20 [1] CRAN (R 4.0.0)
#>  xfun          0.13    2020-04-13 [1] CRAN (R 4.0.0)
#>  xml2          1.3.2   2020-04-23 [1] CRAN (R 4.0.0)
#>  yaml          2.2.1   2020-02-01 [1] CRAN (R 4.0.0)
#>
#> [1] /Library/Frameworks/R.framework/Versions/4.0/Resources/library

[yutannihilation]

Thanks confirmed.

outline calculations are even happening.

Outlines are always calculated whether the goem has its color or not. The problem is not just a warning but the outline is actually drawn incorrectly...

library(ggplot2)

d <- data.frame(x = c(1, 2), y = c(3, 4))

ggplot(d) +
  geom_area(aes(x, y), colour = "black", fill = "pink") +
  coord_polar()

v3.2.1

v3.3.0 (and current master)

[yutannihilation]

At the time of #3529, I naively assumed coord_munch() returns the same number of rows as the original data and I can process the upper and lower data at once, but I was wrong.

ggplot2/R/geom-ribbon.r

Line 139 in 4826838

munched <- coord_munch(coord, positions, panel_params)
