svg.tscircuit.com

A server that takes encoded tscircuit code or circuit JSON and renders it into SVG or PNG assets suitable for use in docs.

Example Output URLs

View	Preview
PCB Layout (SVG)
Schematic (SVG)
Schematic Simulation (SVG)
Assembly (SVG)
Pinout (SVG)

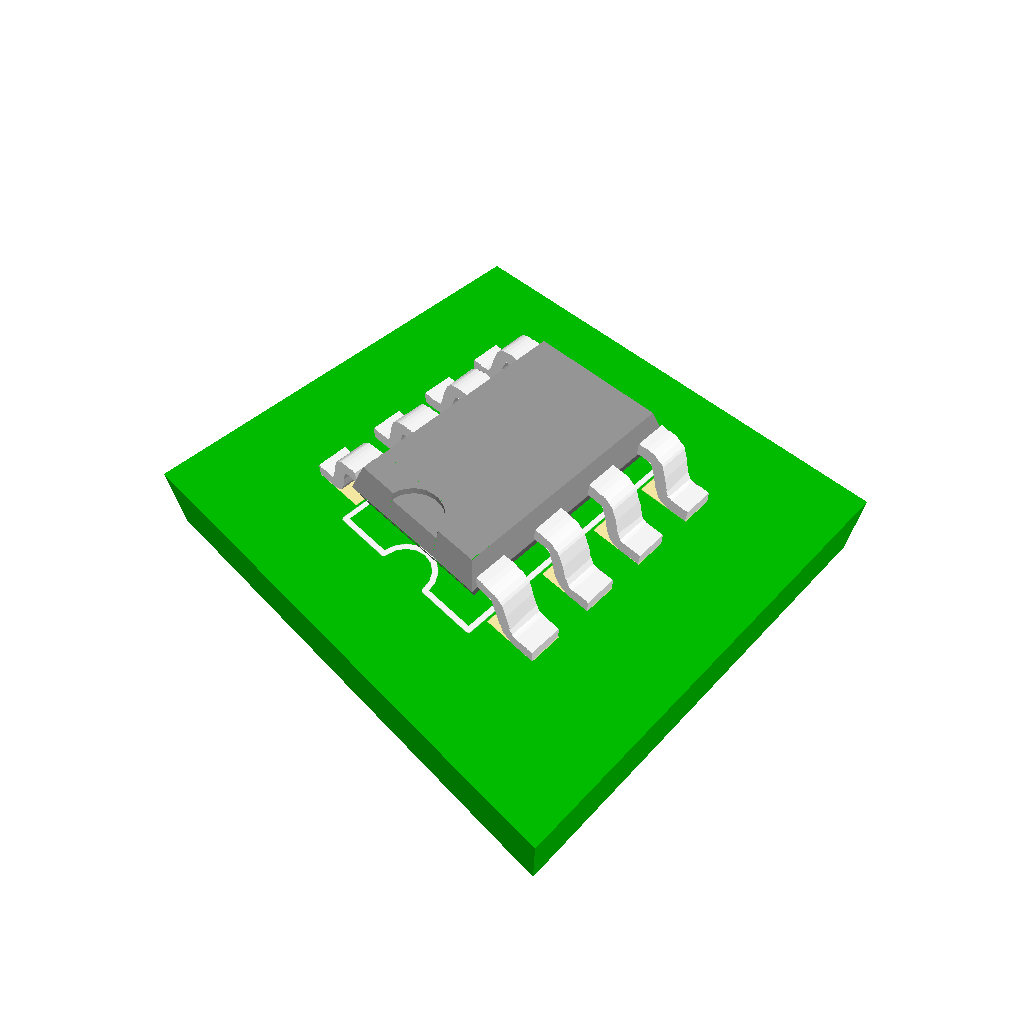

3D Render (PNG)

API Overview

This service converts TSCircuit code or pre-generated circuit JSON into various visual formats (PCB, schematic, assembly, pinout, and 3D views) via HTTP requests. It's designed to be used for generating circuit diagrams, assembly documentation, pinout diagrams, PCB layouts, and 3D visualizations for documentation and web applications.

API Endpoints

1. SVG Generation (Main Endpoint)

URL: GET /?svg_type={type}&code={encoded_code} or POST /?svg_type={type} with circuit_json in body

Parameters:

• svg_type (required): The type of SVG to generate
  • pcb - PCB layout view
  • schematic - Circuit schematic view
  • schsim - Schematic simulation view with graph regions
  • assembly - Assembly overlay view with components and labels
  • pinout - Pinout diagram view
  • 3d - 3D visualization view
• format (optional): Output format. Defaults to svg. Set format=png to receive a PNG rasterized version. PNG-specific query parameters:
  • png_width / png_height
  • png_density

Input Methods:

• code (GET/POST query parameter): Base64-encoded and compressed TSCircuit code
• circuit_json (POST body only): Raw circuit JSON object - pass as {"circuit_json": {...}}
• fs_map (GET query parameter or POST body): Map of filenames to file contents. For GET requests, provide the map as a gzip-compressed, base64-encoded JSON string (e.g. using encodeFsMapToHash from lib/fsMap) or as a JSON stringified object. For POST requests, send { "fs_map": { "index.tsx": "export default () => ..." } }. Optionally include an entrypoint value to specify which file should be executed (defaults to index.tsx).

Either code, fs_map, or circuit_json must be provided.

Response: SVG content with image/svg+xml content type (default) or PNG content with image/png when format=png

Example Request with Code:

curl "https://svg.tscircuit.com/?svg_type=pcb&code=eyJjb2RlIjoiZXhwb3J0IGRlZmF1bHQgKCkgPT4gKFxuICA8Ym9hcmQgd2lkdGg9IjEwbW0iIGhlaWdodD0iMTBtbSI+XG4gICAgPHJlc2lzdG9yXG4gICAgICByZXNpc3RhbmNlPSIxayJcbiAgICAgIGZvb3RwcmludD0iMDQwMiJcbiAgICAgIG5hbWU9IlIxIlxuICAgICAgc2NoWD17M31cbiAgICAgIHBjYlg9ezN9XG4gICAgLz5cbiAgICA8Y2FwYWNpdG9yXG4gICAgICBjYXBhY2l0YW5jZT0iMTAwMHBGIiBcbiAgICAgIGZvb3RwcmludD0iMDQwMiJcbiAgICAgIG5hbWU9IkMxIlxuICAgICAgc2NoWD17LTN9XG4gICAgICBwY2JYPSstM31cbiAgICAvPlxuICAgIDx0cmFjZSBmcm9tPSIuUjEgPiAucGluMSIgdG89Ii5DNSA+IC5waW4xIiAvPlxuICA8L2JvYXJkPlxuKSJ9"

Example Request with Circuit JSON:

curl "https://svg.tscircuit.com/?svg_type=pcb&circuit_json=BASE64_ENCODED_JSON"

Example Request with fs_map (GET):

curl "https://svg.tscircuit.com/?svg_type=pcb&fs_map=ENCODED_FS_MAP"

Example Request with fs_map (POST):

curl "https://svg.tscircuit.com/?svg_type=pcb" \
  -H "Content-Type: application/json" \
  -d '{
    "fs_map": {
      "index.tsx": "export default () => <board>...</board>"
    },
    "entrypoint": "index.tsx"
  }'

2. Health Check

URL: GET /health

Response: JSON with status

{"ok": true}

3. URL Generation Page

URL: GET /generate_url?code={encoded_code}

Response: HTML page for generating shareable URLs

4. Index Page

URL: GET /

Response: HTML page with usage instructions

Usage Examples

TSCircuit Code

export default () => (
  <board width="10mm" height="10mm">
    <resistor
      resistance="1k"
      footprint="0402"
      name="R1"
      schX={3}
      pcbX={3}
    />
    <capacitor
      capacitance="1000pF"
      footprint="0402"
      name="C1"
      schX={-3}
      pcbX={-3}
    />
    <trace from=".R1 > .pin1" to=".C1 > .pin1" />
  </board>
)

API Calls

PCB Layout:

curl "https://svg.tscircuit.com/?svg_type=pcb&code=YOUR_ENCODED_CODE"

PNG Output:

curl "https://svg.tscircuit.com/?svg_type=pcb&format=png&code=YOUR_ENCODED_CODE"

Schematic View:

curl "https://svg.tscircuit.com/?svg_type=schematic&code=YOUR_ENCODED_CODE"

Assembly View:

curl "https://svg.tscircuit.com/?svg_type=assembly&code=YOUR_ENCODED_CODE"

Pinout View:

curl "https://svg.tscircuit.com/?svg_type=pinout&code=YOUR_ENCODED_CODE"

3D Visualization:

curl "https://svg.tscircuit.com/?svg_type=3d&code=YOUR_ENCODED_CODE"

Code Encoding

The code parameter must be a compressed and base64-encoded string. You can use the @tscircuit/create-snippet-url package to generate these:

import { getCompressedBase64SnippetString } from "@tscircuit/create-snippet-url"

const tscircuitCode = `
export default () => (
  <board width="10mm" height="10mm">
    <led name="LED1" />
  </board>
)
`

const encodedCode = getCompressedBase64SnippetString(tscircuitCode)
const apiUrl = `https://svg.tscircuit.com/?svg_type=pcb&code=${encodeURIComponent(encodedCode)}`

To use circuit_json, base64 encode the circuit JSON:

const circuitJson = { /* ... */ }
const encodedJson = Buffer.from(JSON.stringify(circuitJson)).toString("base64")
const apiUrl = `https://svg.tscircuit.com/?svg_type=pcb&circuit_json=${encodeURIComponent(encodedJson)}`

Response Headers

Successful responses include:

• Content-Type: image/svg+xml (SVG) or image/png (PNG)
• Cache-Control: public, max-age=86400, s-maxage=31536000, immutable

Error Handling

When errors occur, the API returns an image with error information instead of the requested circuit asset. Error responses include:

• Content-Type: image/svg+xml (or image/png when format=png)
• Cache-Control: public, max-age=86400, s-maxage=86400

Caching

The API implements aggressive caching for generated assets:

• Browser cache: 24 hours (max-age=86400)
• CDN cache: 1 year (s-maxage=31536000)
• Error responses: 24 hours

Development

bun run start
