Draw pen lines via fragment shader

[adroitwhiz]

Resolves

Kinda resolves #420?
Also resolves scratchfoundation/scratch-gui#4313 [EDIT: and now resolves #306]

Proposed Changes

This changes the PenSkin's line-drawing routine from a primarily vertex-based operation to a fragment-based one. Lines are now drawn via a screen-space pixel shader that provides proper antialiasing.

PenSkin.drawLineOnBuffer() now draws a single axis-aligned quad. The quad's fragment shader, given the endpoints, color, and thickness of the line, properly computes antialiased line coverage for each pixel inside it.

This has two effects:

1. It gets rid of all the jaggies on the edges of each line
2. It makes dots truly circular

This still doesn't completely match 2.0. In 2.0, "size 1" lines appear thicker at certain angles, and pen points render at a different offset from pen lines. The former might be worth investigating, but in my opinion the latter behavior is too confusing/annoying to be worth emulating.

On My Machine™, it runs 236783324 at the same speed, suggesting the bottleneck is in the VM now, but more comprehensive benchmarking across different GPUs would be wise.

I've done very little WebGL, so a lot of cleanup/refinement is probably necessary.

Current	This PR	Scratch 2.0
Pen stroke test
Pen stroke test 2

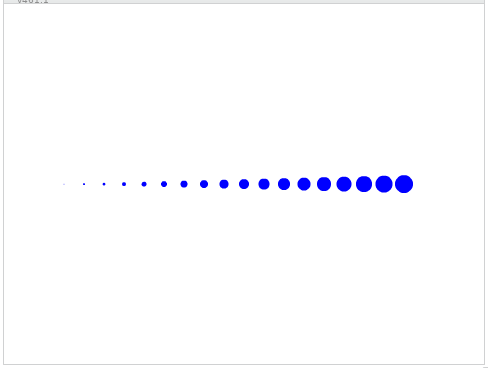

Pen roundness test

EDIT: This may be a good test project. Make sure to run this multiple times-- there's a lot of weird variance. It looks like most of the time (in both the current code and this PR's) is spent in setUniforms, but fixing that would likely require UBOs, which are a WebGL 2 feature.

[adroitwhiz]

It looks like disabling antialiasing (#502) also had an effect on pen lines:

[cwillisf]

This is pretty cool - I like the nicer edges! @fsih and I had some readability & maintenance concerns while going over it, listed below.

[fsih]

@BryceLTaylor We're considering putting in this PR that should improve the appearance of pen lines, but we need to benchmark it first to make sure that it doesn't significantly impact pen performance, especially on devices with lower-power GPUs. Can we work together with you sometime to design benchmarking tests?

@cwillisf @fsih

[adroitwhiz]

Review feedback has been addressed!

[adroitwhiz]

Also, are you still interested in PenSkin code cleanups (e.g. #450)? There's a lot of unused code (like drawStamp) and unnecessary code (like the rectangle-drawing stuff) that could be removed.

[adroitwhiz]

I've done some benchmarking of my own to compare the performance of:

• The old line implementation
• The new line implementation, with the bounds calculation done in JS + uploaded to the vertex shader via a 4x4 matrix uniform
• The new line implementation, with the bounds calculation done in the vertex shader

All numbers given are lines per second, per this benchmark.

"Workstation" (AMD Ryzen 7 1700 + NVIDIA GTX 780 Ti)

Run #	Firefox (old lines)	Firefox (new lines; bounds in JS)	Firefox (new lines; bounds in VS)
1	44737	43776	49984
2	51013	51552	52207
3	51153	49608	60704
4	57501	52822	55869
5	54206	52198	56861
avg.	51722	49991	55125

Run #	Chrome (old lines)	Chrome (new lines; bounds in JS)	Chrome (new lines; bounds in VS)
1	105232	82110	99655
2	104882	92315	96482
3	102243	85058	93570
4	100148	88413	101246
5	105377	90816	93938
avg.	103576	87742	96978

Run #	Chrome SwiftShader (old lines)	Chrome SwiftShader (new lines; bounds in JS)	Chrome SwiftShader (new lines; bounds in VS)
1	13845	15255	13879
2	13930	15173	14053
3	13979	14622	14083
4	13883	15171	14062
5	13988	15242	14243
avg.	13925	15093	14064

Browser	Avg. speedup over old lines (bounds in JS)	Avg. speedup over old lines (bounds in VS)
Firefox	-3.3%	6.6%
Chrome	-15.3%	-6.4%
Chrome SwiftShader	8.4%	1.0%

Old laptop (Intel Core 2 Duo T5800 + Intel Express 965)

Note that SwiftShader was enabled by default in Chrome due to GPU blacklisting.

Run #	Firefox (old lines)	Firefox (new lines; bounds in JS)	Firefox (new lines; bounds in VS)
1	4730	3794	5152
2	4359	3437	6106
3	5211	4530	3747
4	5158	4619	3618
5	5380	3833	6065
avg.	4968	4043	4938

Run #	Chrome (old lines)	Chrome (new lines; bounds in JS)	Chrome (new lines; bounds in VS)
1	21631	19560	21992
2	21960	22909	23525
3	22261	20026	23983
4	22721	24325	24186
5	23059	24182	24017
avg.	22326	22200	23541

Run #	Chrome SwiftShader (old lines)	Chrome SwiftShader (new lines; bounds in JS)	Chrome SwiftShader (new lines; bounds in VS)
1	4068	3789	3558
2	6423	5372	4224
3	5570	6439	4371
4	5861	5905	4397
5	6961	6439	4433
avg.	5777	5589	4197

Browser	Avg. speedup over old lines (bounds in JS)	Avg. speedup over old lines (bounds in VS)
Firefox	-18.6%	-0.6%
Chrome	-0.6%	5.4%
Chrome SwiftShader	-3.3%	-27.3%

EDIT: a previous version of this post said that Chrome VS was 5.4% slower. This was incorrect--it is 5.4% faster.

In general, it appears that:

• The new pen line implementation is very slightly slower than the old one, but only by a few percent.
• Moving the pen line bounds calculation to the vertex shader speeds up Firefox and Chrome on real GPUs, but slows down SwiftShader (Chrome's software renderer).

I'd like to see a benchmark on a low-energy-consumption laptop (like an "ultrabook" and/or Chromebook), which would probably have a CPU comparable to my laptop but a much faster GPU.

[cwillisf]

Looks great! I do have one question about the vertex coordinates, though.
Thanks for all the benchmarks!

[cwillisf]

We're going to do a bit more performance testing but the code looks good!

[cwillisf]

Also, are you still interested in PenSkin code cleanups (e.g. #450)? There's a lot of unused code (like drawStamp) and unnecessary code (like the rectangle-drawing stuff) that could be removed.

Sorry -- missed this comment. We're sort of re-evaluating our process for priorities so it's hard to know what should or shouldn't be prioritized until the dust settles. That said, I think code cleanups, such as addressing #450, are welcome but won't necessarily get a high priority. As long as you're OK with that, go for it ;)
