calculate z.range in stat_contour and stat_contour_filled on the full layer data

[thomasp85]

Fixes #3875

This PR fixes the issue as discussed in the thread. The issue is also present in the standard stat_contour where the levels of the contour lines would not be equivalent across panels

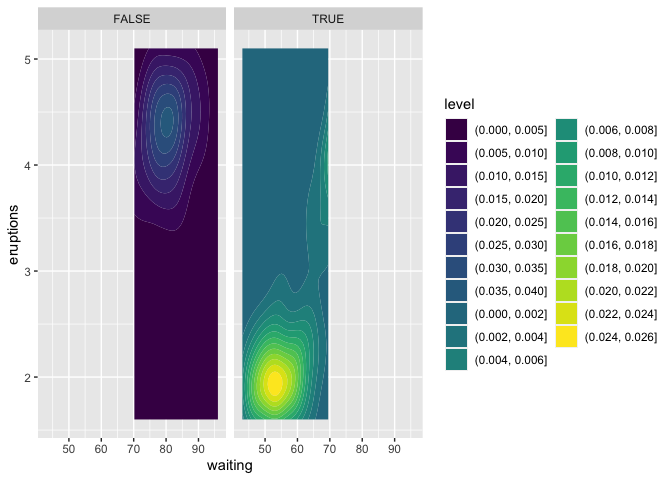

Old buggy behaviour

library(ggplot2)
ggplot(faithfuld, aes(waiting, eruptions, z = density)) +
  geom_contour_filled() +
  facet_wrap(~waiting < 70)

^{Created on 2020-03-10 by the reprex package (v0.3.0.9001)}

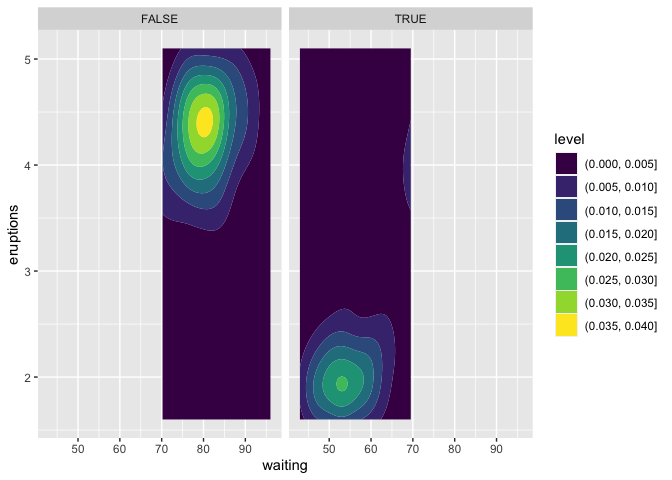

Working example with PR

library(ggplot2)
ggplot(faithfuld, aes(waiting, eruptions, z = density)) +
  geom_contour_filled() +
  facet_wrap(~waiting < 70)

^{Created on 2020-03-10 by the reprex package (v0.3.0.9001)}

[clauswilke]

I think this breaks the use of StatContour by StatDensity2d:

ggplot2/R/stat-density-2d.r

Lines 71 to 80 in 435ac04

	dens <- MASS::kde2d(
	data$x, data$y, h = h, n = n,
	lims = c(scales$x$dimension(), scales$y$dimension())
	)
	df <- expand.grid(x = dens$x, y = dens$y)
	df$z <- as.vector(dens$z)
	df$group <- data$group[1]
	if (contour) {
	StatContour$compute_panel(df, scales, bins, binwidth)

We don't know the overall z range of inferred densities until we have inferred them for all groups.

Does the following reprex work with your branch?

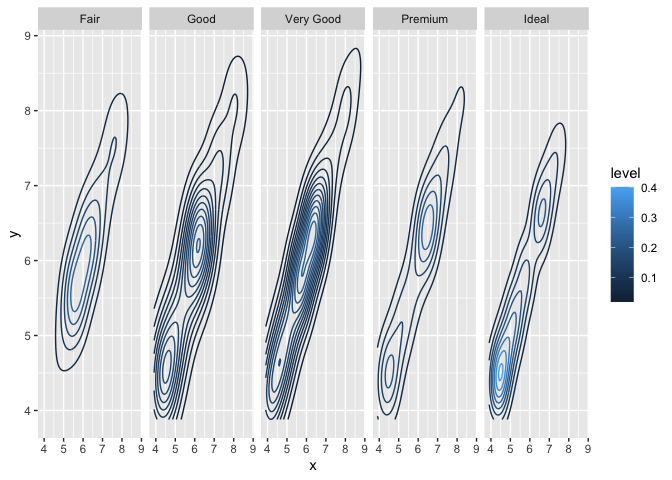

library(ggplot2)

set.seed(4393)
dsmall <- diamonds[sample(nrow(diamonds), 1000), ]
ggplot(dsmall, aes(x, y)) +
  geom_density_2d(aes(colour = after_stat(level))) +
  facet_grid(. ~ cut)

^{Created on 2020-03-10 by the reprex package (v0.3.0)}

[clauswilke]

Continuing discussion from here: #3875 (comment)

Moving to numeric will loose information and remove the possibility of using binned guides which is a very bad move

Just to be clear: I think we should return both. So this is primarily a discussion about what the default mapping for fill should be, and whether the column called level should be numeric or categorical. Maybe the compromise is to keep level numeric for consistency but by default map to the column that returns the factor, whatever its name? :-)

Also, unless I'm missing something, it's fairly easy to go from the numeric limits to the ordered factor. It's much harder the other way round, because we don't have a simple inverse to glue().

library(ggplot2)
library(glue)

set.seed(4393)
dsmall <- diamonds[sample(nrow(diamonds), 1000), ]

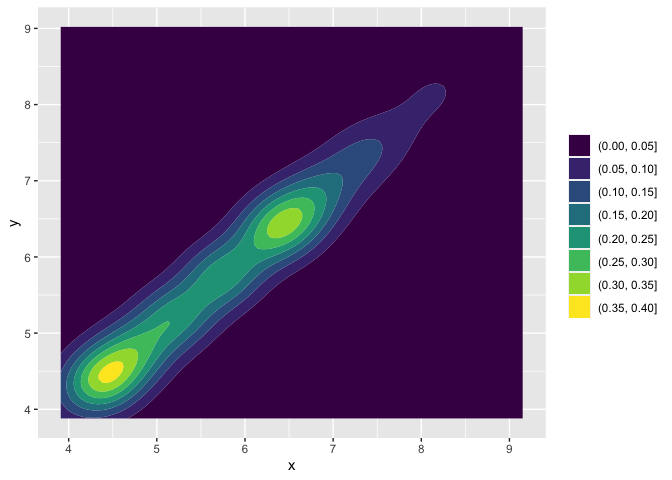

ggplot(dsmall, aes(x, y)) +
  geom_density_2d_filled(aes(fill = after_stat(bin))) +
  scale_fill_viridis_d(name = NULL)


ggplot(dsmall, aes(x, y)) +
  geom_density_2d_filled(
    aes(fill = after_stat(ordered(glue("({level_low}, {level_high}]"))))
  ) +
  scale_fill_viridis_d(name = NULL)

^{Created on 2020-03-10 by the reprex package (v0.3.0)}

[clauswilke]

I just realized that there may be a clean way to resolve all of these issues at the same time. Let me give it a shot.

[thomasp85]

Well, if you return level_low and level_high then no information is lost, but a single numeric level will not be able to capture the binning range. We should continue to default map to the ordered factor. There is no mapping to a single numeric variable that is truthful to the data.

You are correct that your example with density_2d doesn't work with this PR. I'm sure that is fixable, but I'll let you work on your solution for now

[clauswilke]

The latest iteration of my PR #3864 now incorporates the approach you proposed here and fixes all associated issues. See example below. Could you take a look and let me know whether I'm on the right track? If yes I'll clean up the code and rewrite the documentation.

library(ggplot2)

ggplot(faithfuld, aes(waiting, eruptions, z = density)) +
  geom_contour_filled() +
  facet_wrap(~waiting < 70)

set.seed(4393)
dsmall <- diamonds[sample(nrow(diamonds), 1000), ]
d <- ggplot(dsmall, aes(x, y))

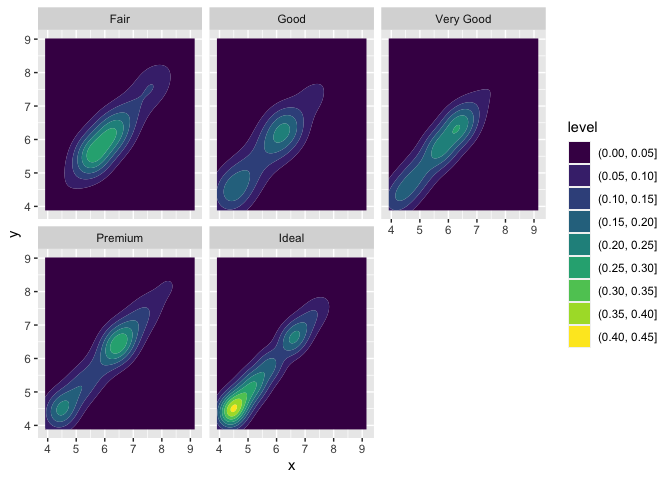

d + geom_density_2d_filled() +
  facet_wrap(~cut)

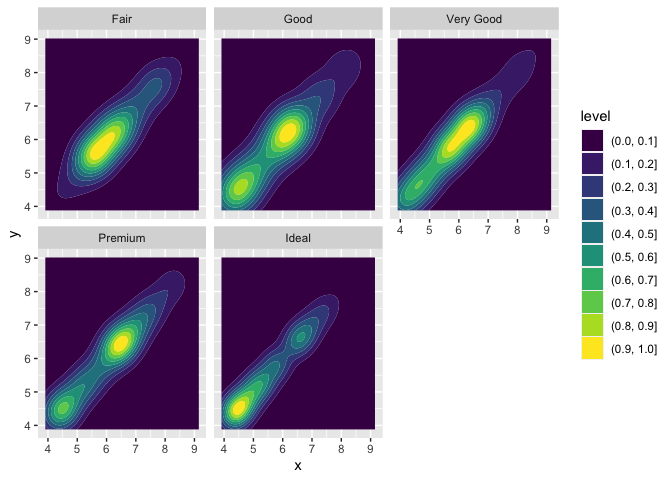

d + geom_density_2d_filled(contour_var = "ndensity") +
  facet_wrap(~cut)

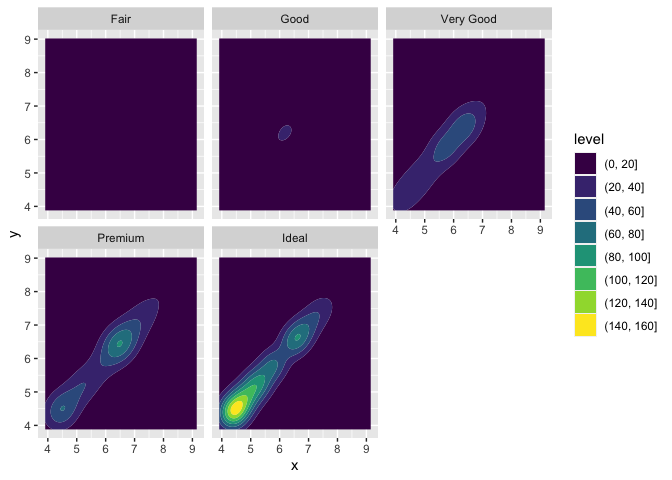

d + geom_density_2d_filled(contour_var = "count") +
  facet_wrap(~cut)

d + geom_density_2d(aes(color = after_stat(level))) +
  facet_wrap(~cut)

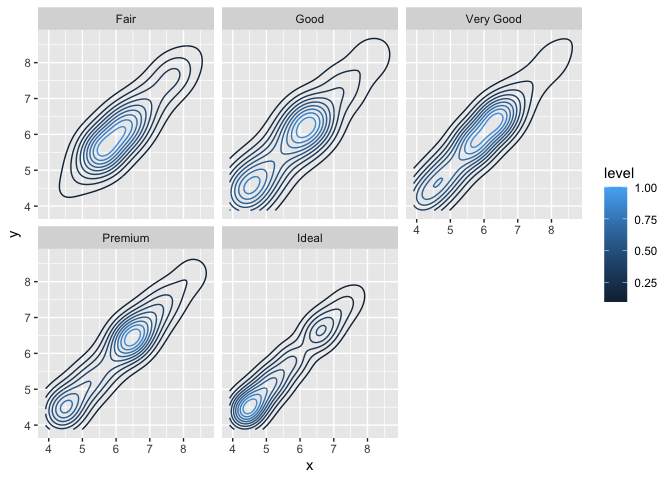

d + geom_density_2d(aes(color = after_stat(level)), contour_var = "ndensity") +
  facet_wrap(~cut)

d + geom_density_2d(aes(color = after_stat(level)), contour_var = "count") +
  facet_wrap(~cut)
#> Warning: stat_contour(): Zero contours were generated
#> Warning in min(x): no non-missing arguments to min; returning Inf
#> Warning in max(x): no non-missing arguments to max; returning -Inf

^{Created on 2020-03-11 by the reprex package (v0.3.0)}

[clauswilke]

The key idea of my revised approach is to implement a true chaining of the 2d-density stat and the contour stat, by reimplementing compute_layer().

https://github.com/clauswilke/ggplot2/blob/6546535fc46797a5520de1adcfe4c7c1d281ae0f/R/stat-density-2d.r#L94-L123

[thomasp85]

Closing this now. All in all we are on the same page and I'm happy with #3864
